Garage / Apartment Project  2009-2012

Here is a project to build a two car garage, shop and art studio with a small accessory apartment undedrneath built into a side hill below the garage.
It would have stunning views of the cliffs on Deer Mountain.
Here is the project story as it unfolds...




Kitchen for the 800SF apartment    June 2013

Here's the garage as you come up the driveway. All Ext Lights on photocell and dimmed for effect


 Apartment living room

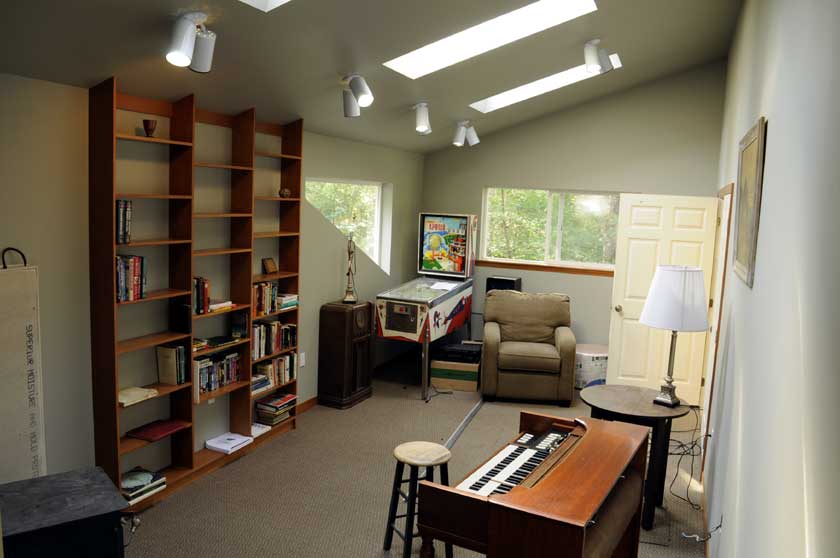

Studio is behind the garage and above a portion of the apartment. Note the woodstove, skylights and Hammond M-3

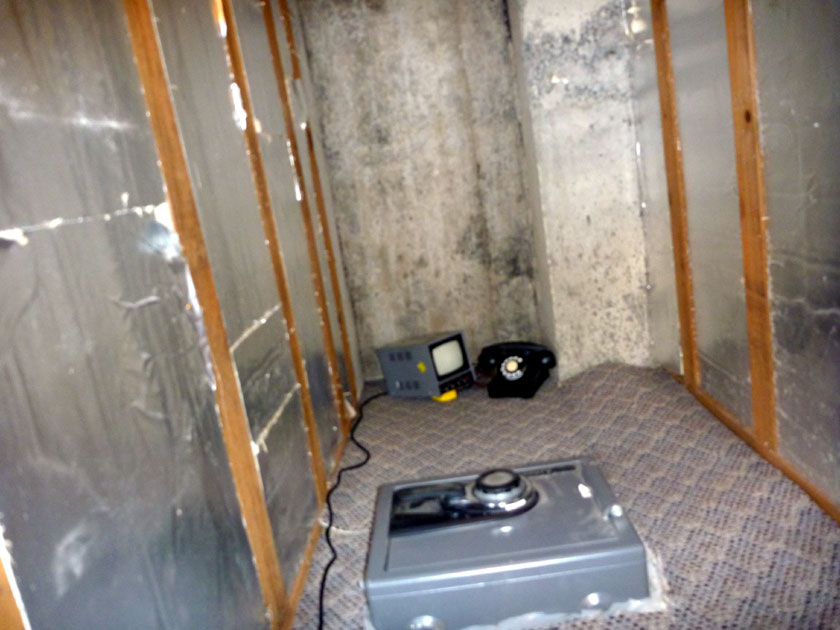

Panic Room in MIL apt  ...More

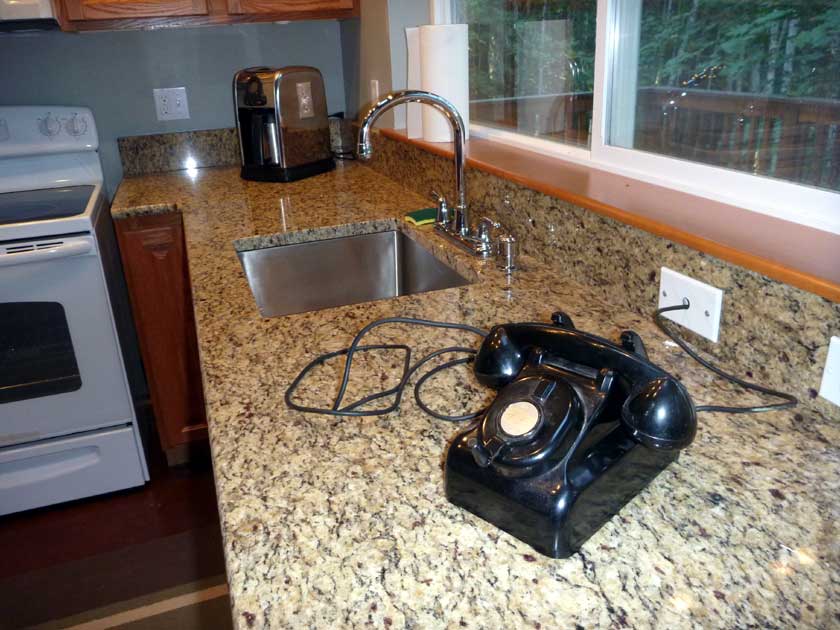

1940's Private Exchange Magneto Phone system connects to gate and private magneto phone system

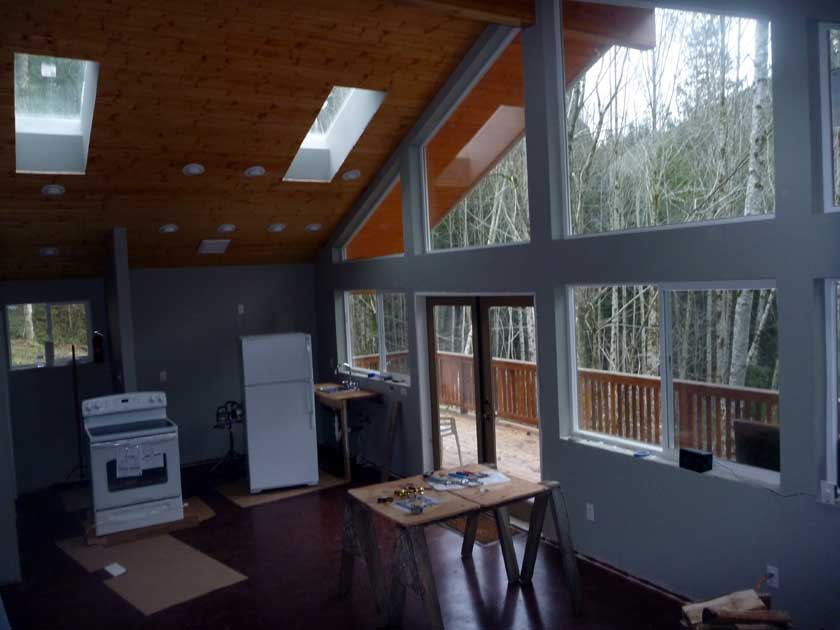

Kitchen Appliances going in. Floor concrete stained

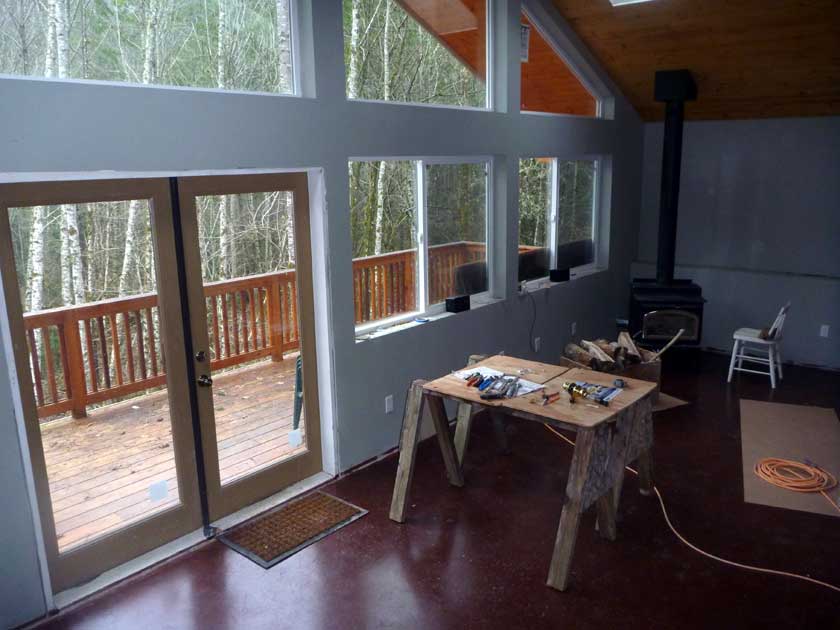

View of greatroom, woodstove in corner ready for trim

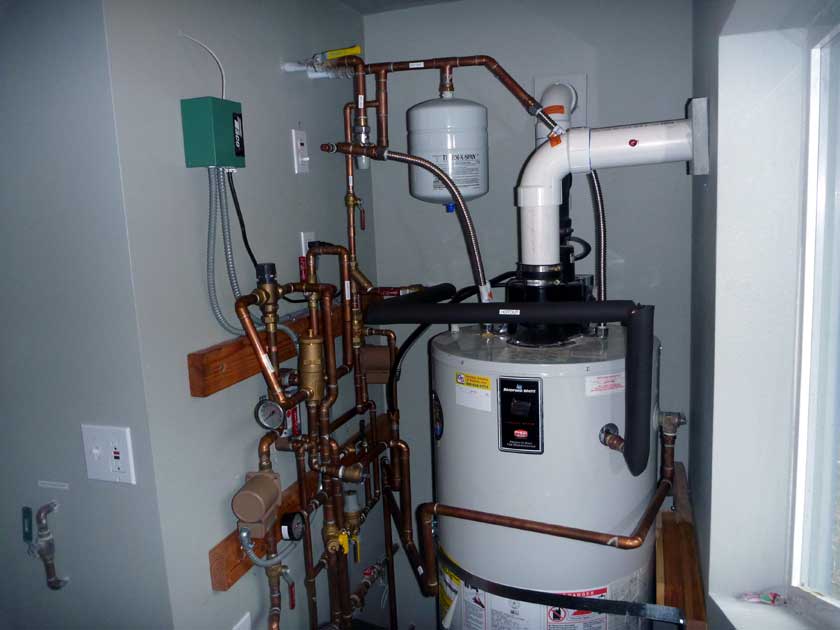

Shot of the hot water radiant heat system. Propane fired tank provides domestic hot water and hot water to the pex tubes in the apartment floor.


Fall 2011

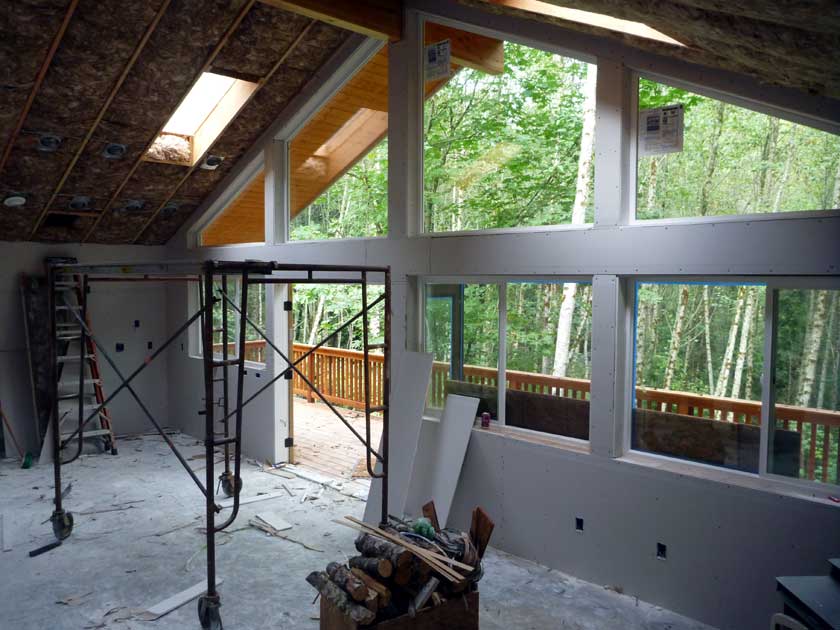

View from downhill Fall 2011 Drywall going in apartment

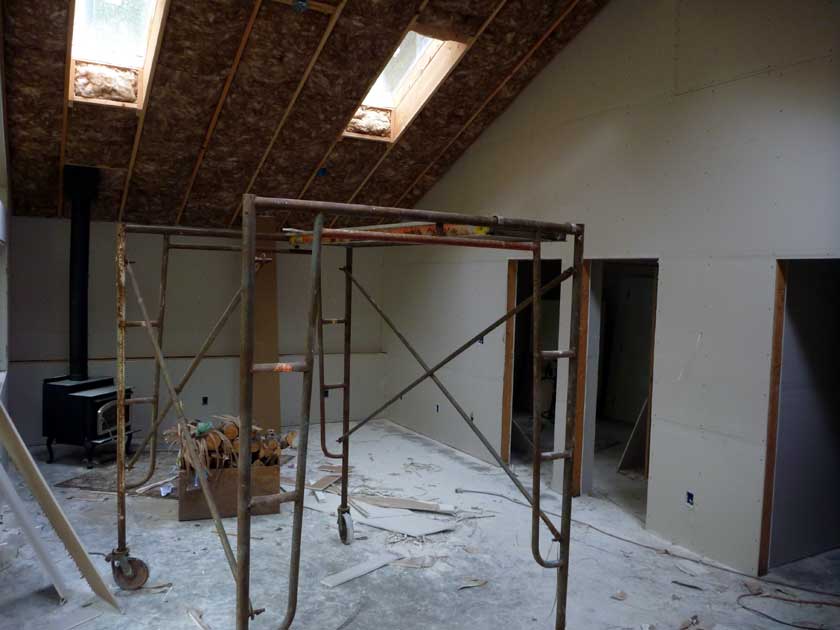

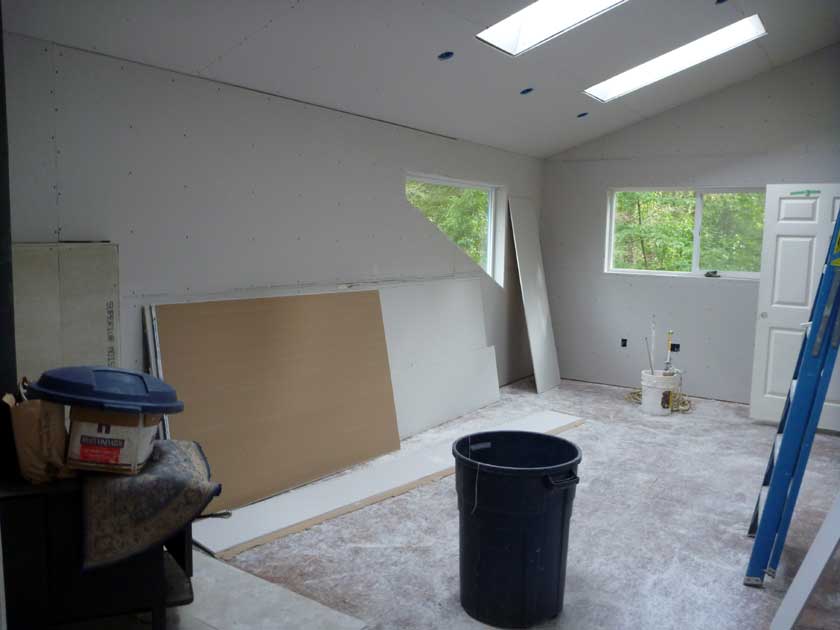

Another drywall shot apartment Drywall in the workshop

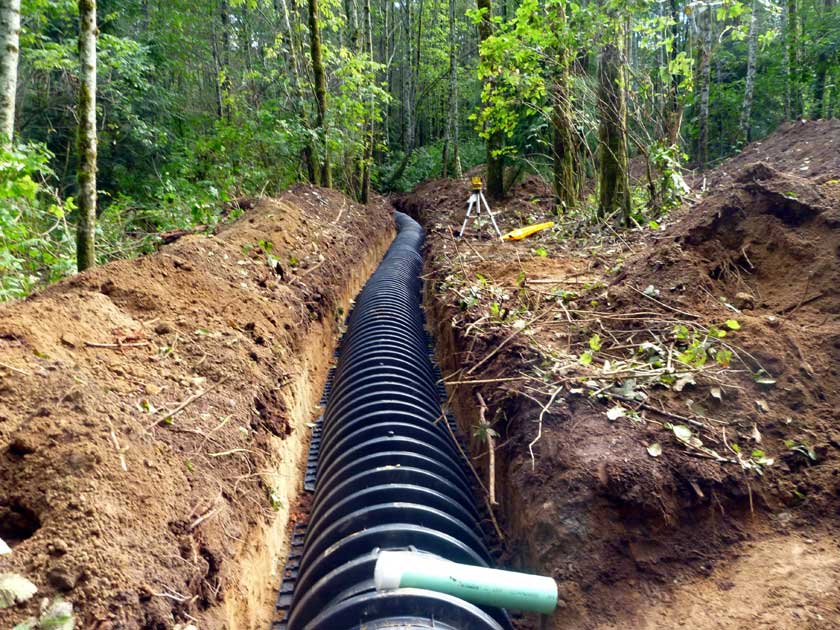

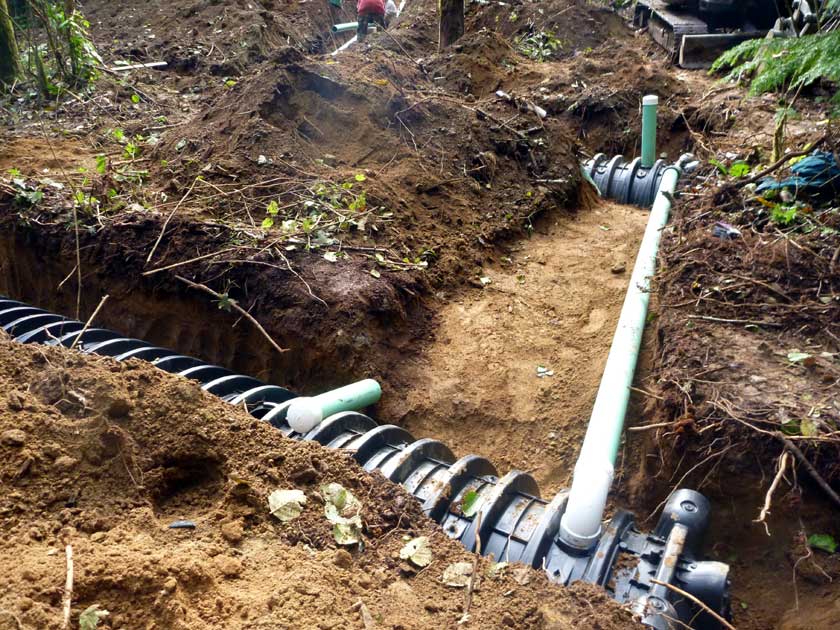

Septic System link between two runs each 80 ft Septic "Gravelless Chamber" type installation

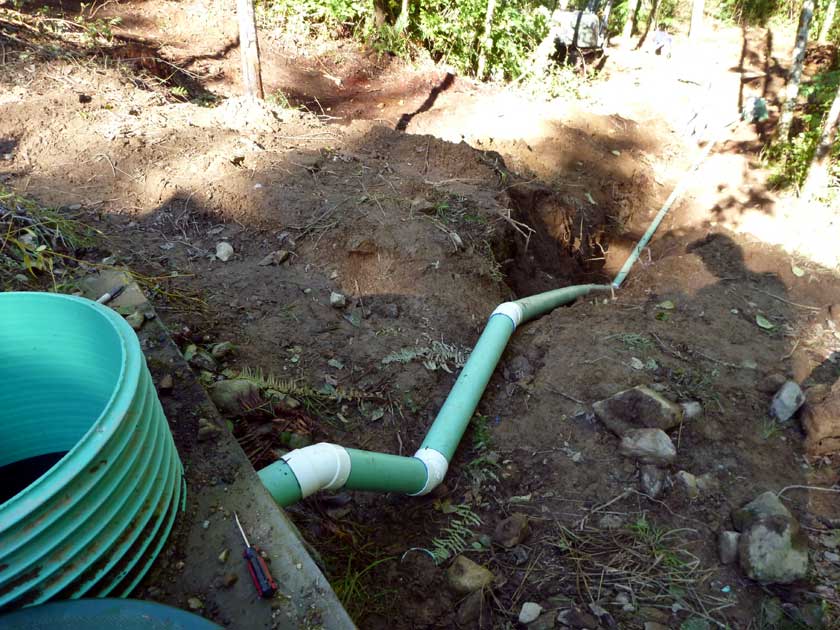

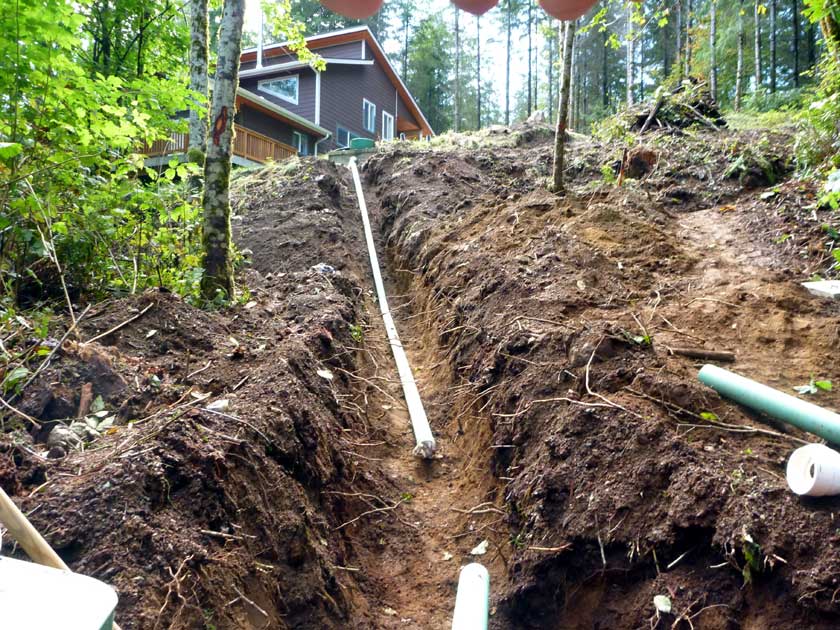

Running pipe from tank Tank to drain field run

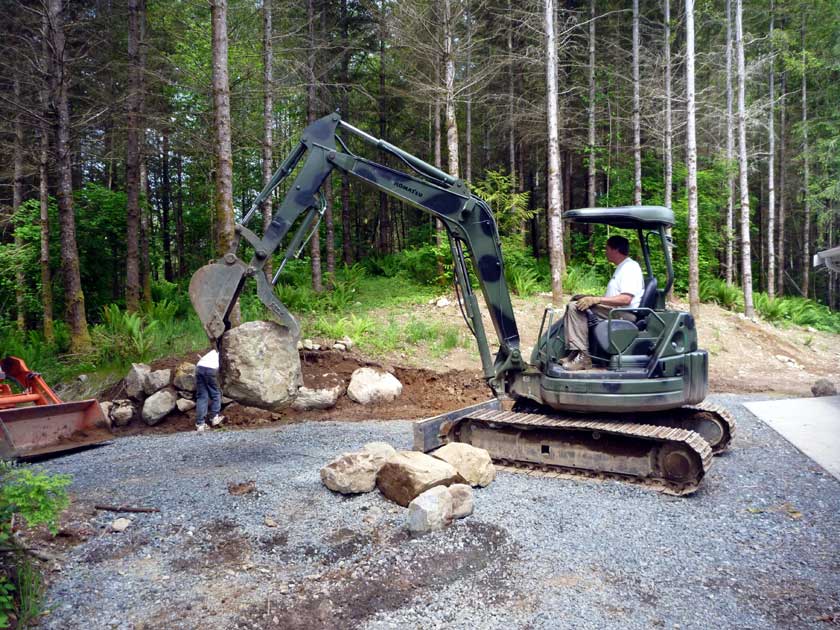

Installing a Rockery with available rocks

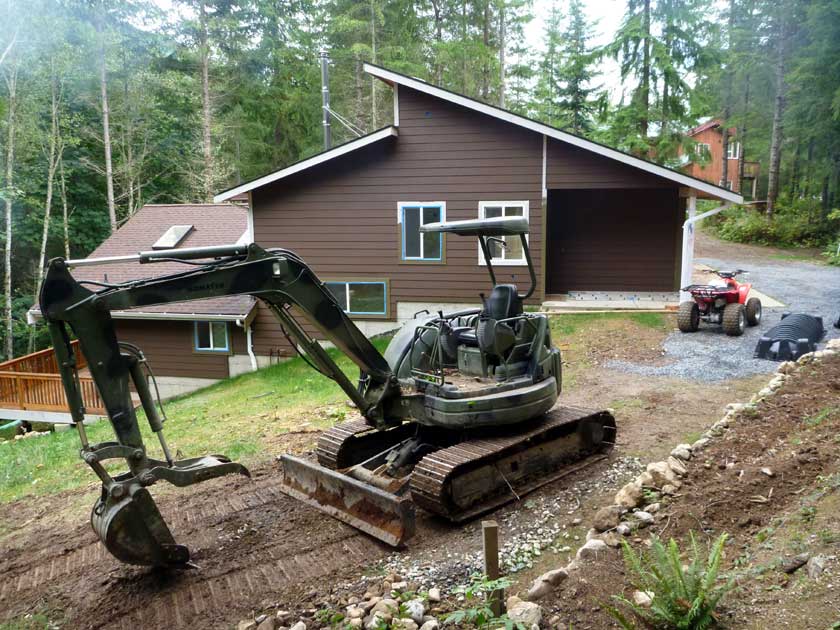

Excavator taking a break  Note the brown paint choice

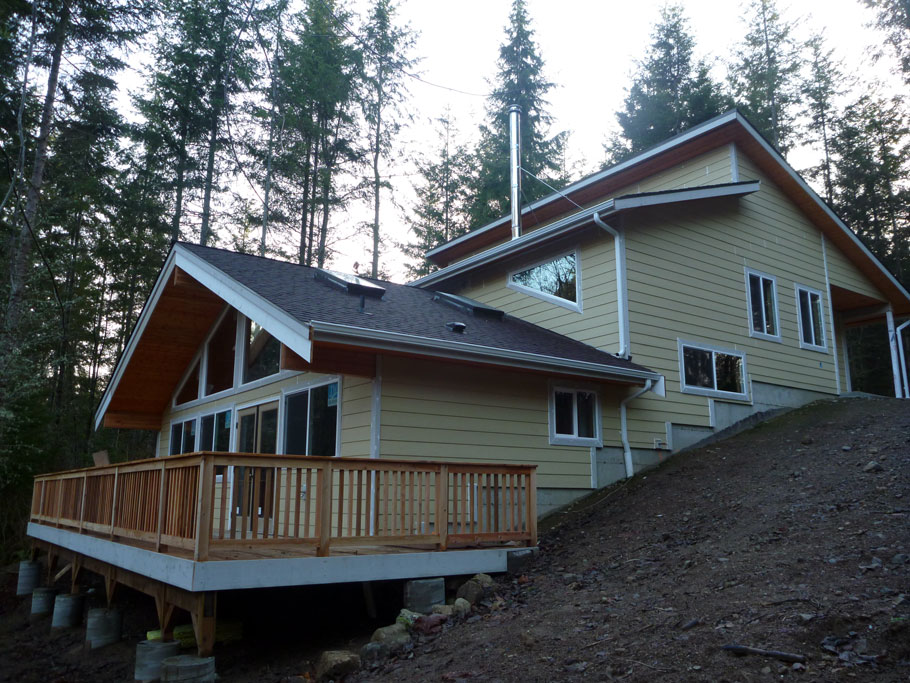

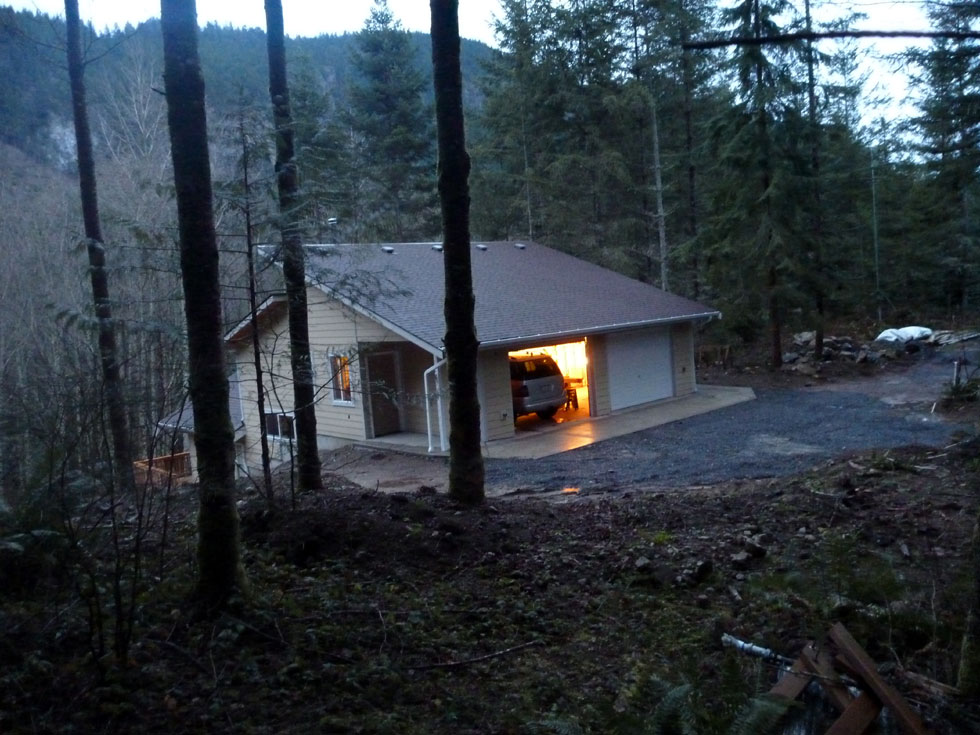

Fall 2010 evening shot Pretty much finished on the outside and to "Lockup"

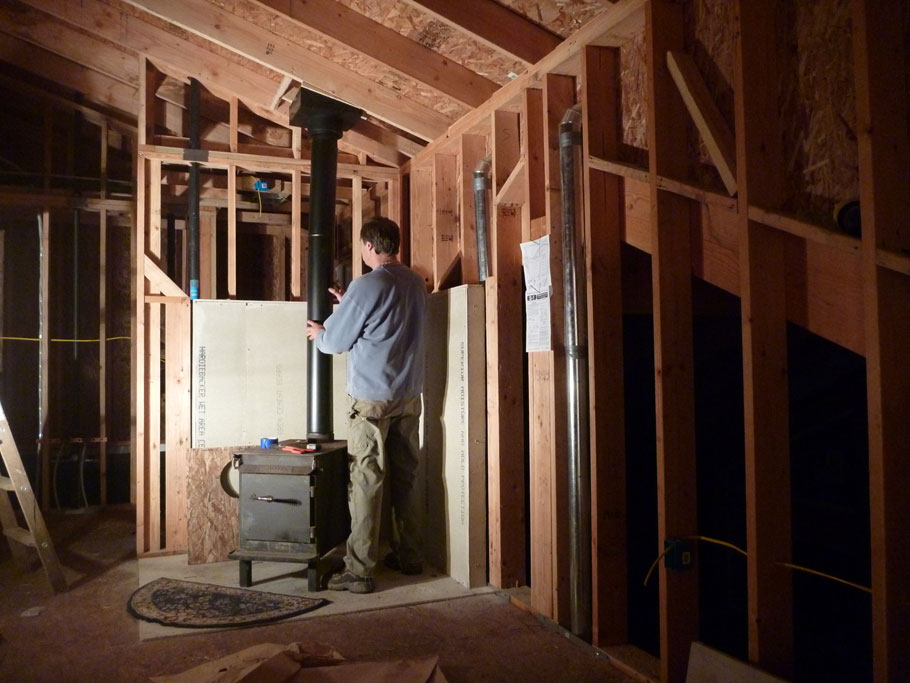

Installing the wood stove in the shop/studio

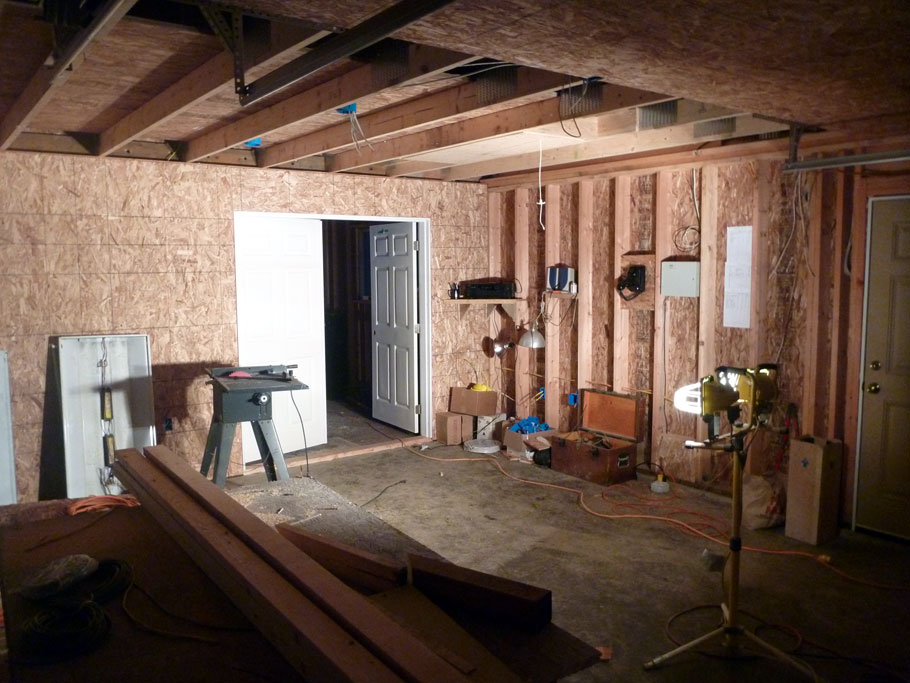

View from the garage looking at the entry to the shop

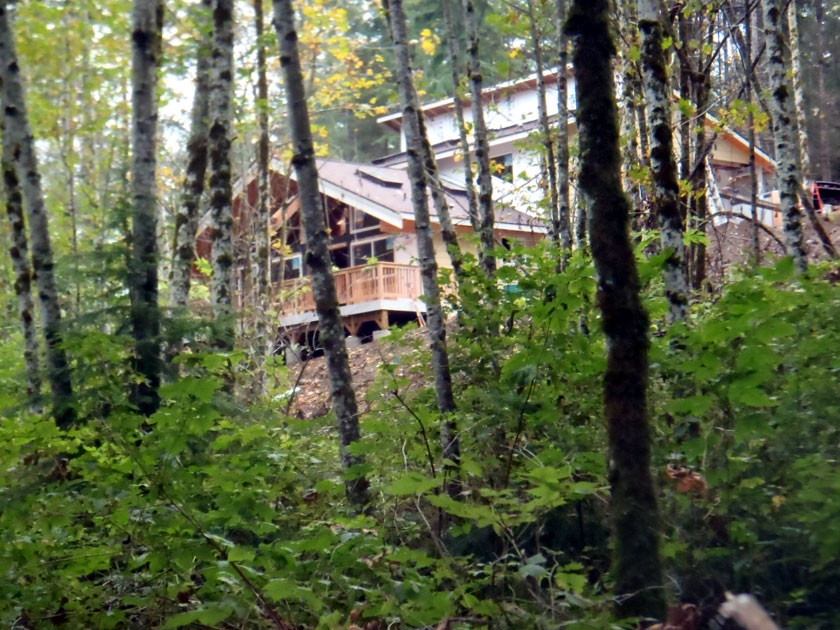

Shot from the North through woods

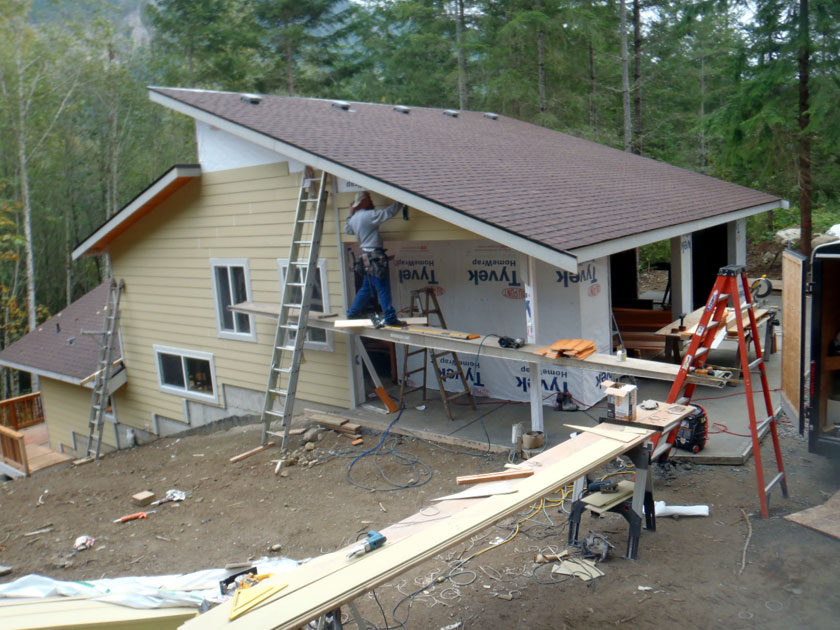

Hardiboard siding going on. This will not be the final color!




Garage Front October 2011

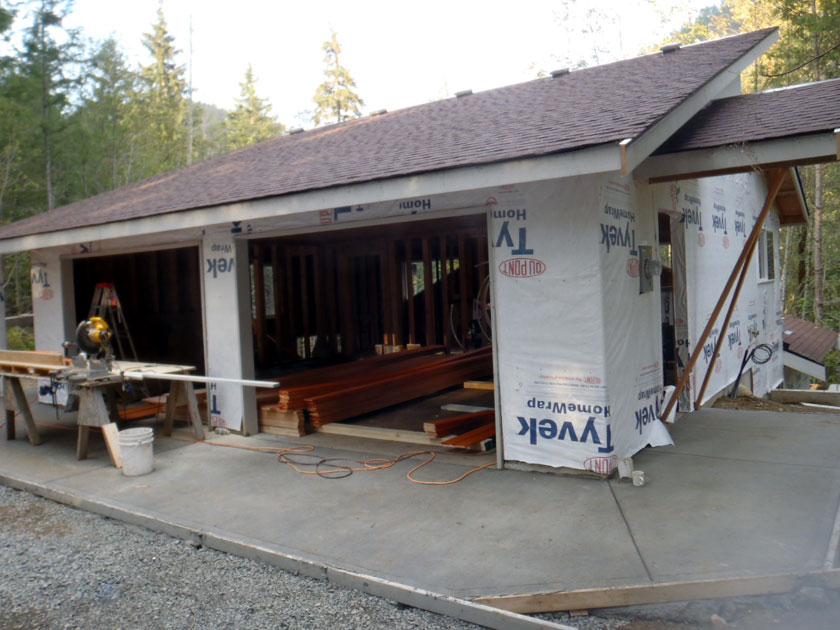

Tyvek home wrap on and driveway/walkway poured.
Note stained soffet boards staged inside.

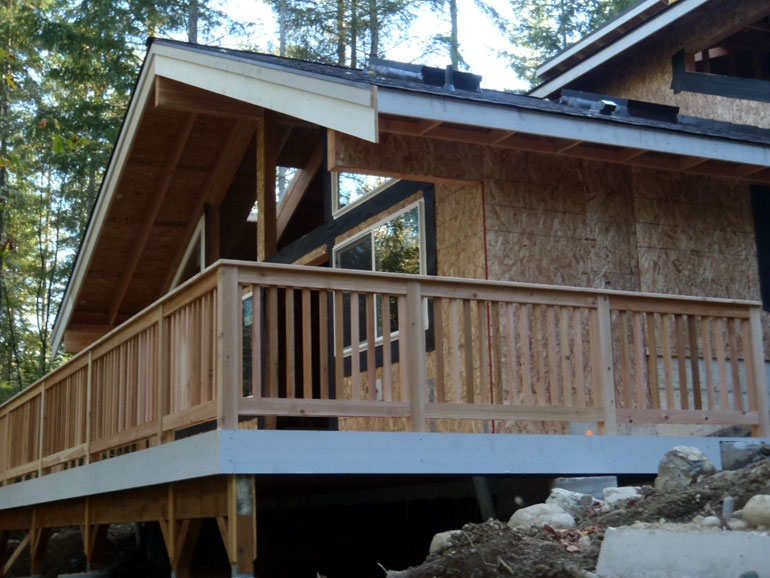

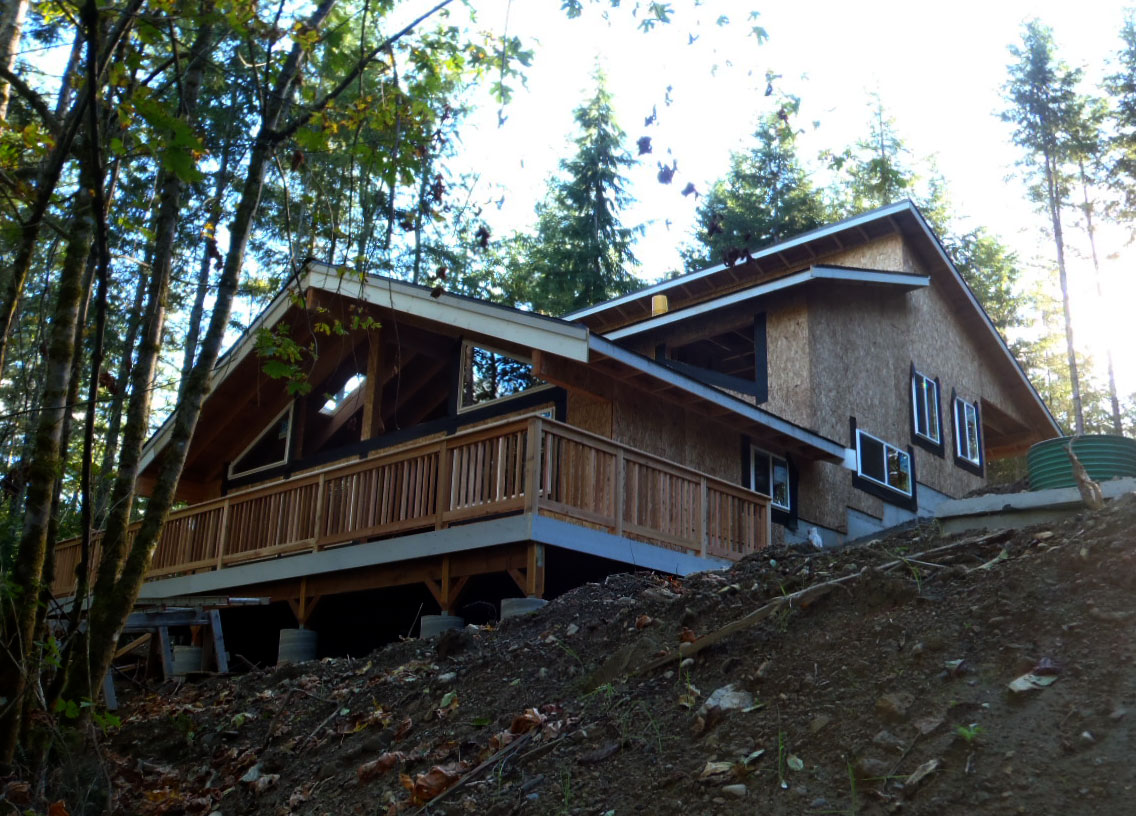

October 2010: Windows and deck going on

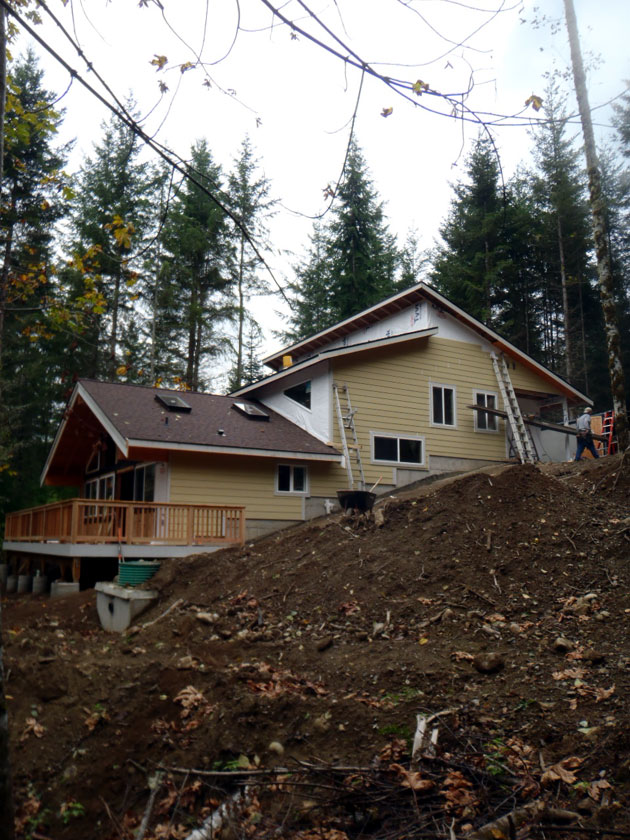

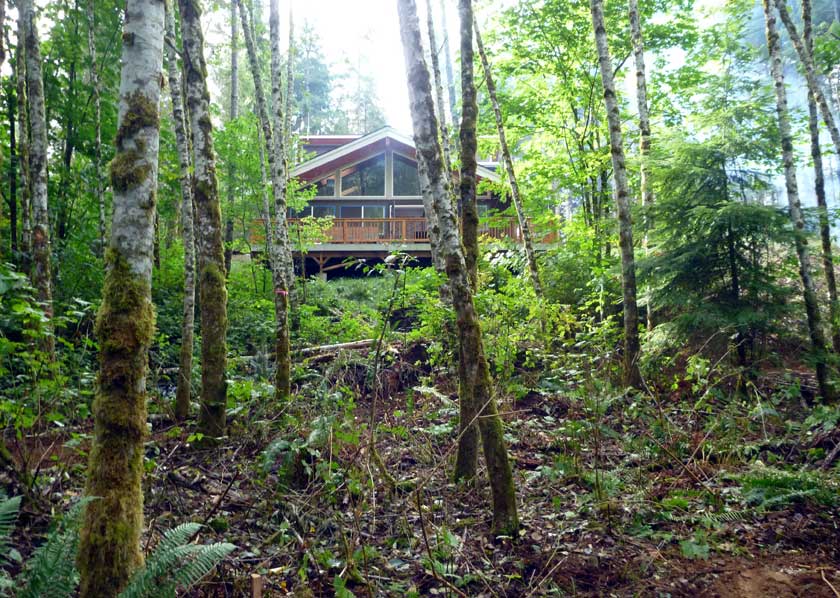

View from below. Note how it is built into the side hill.

Pen Sketch from woods

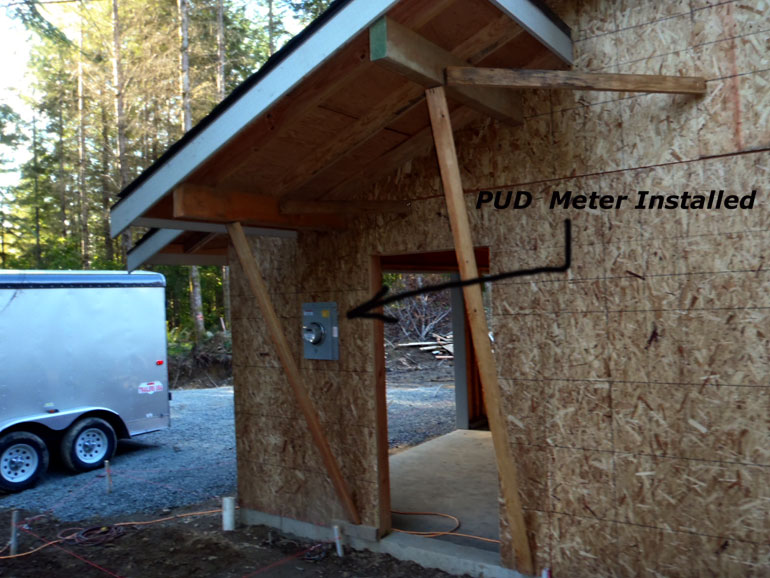

PUD Meter Installed.
Electric Service milestone!

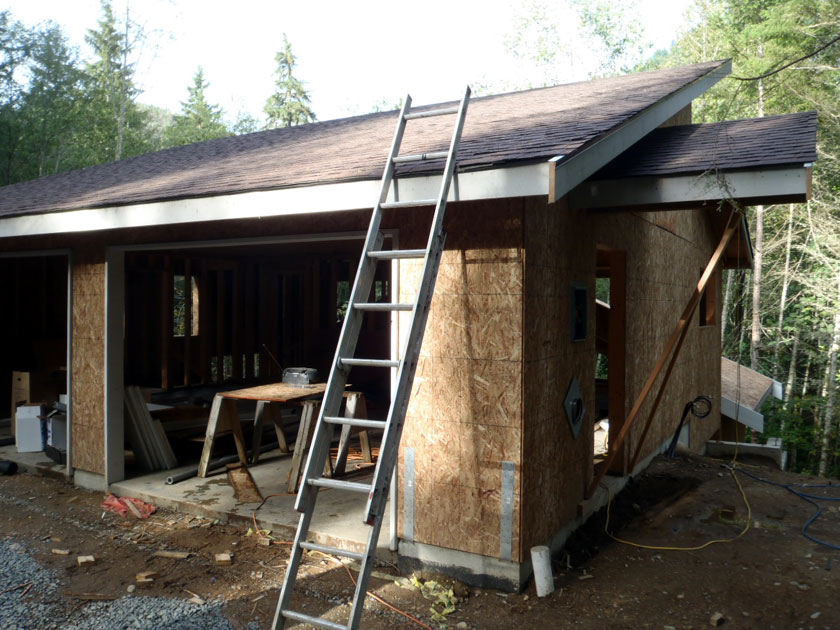

Roof going on nicely.
Note the little roof over the side entry door

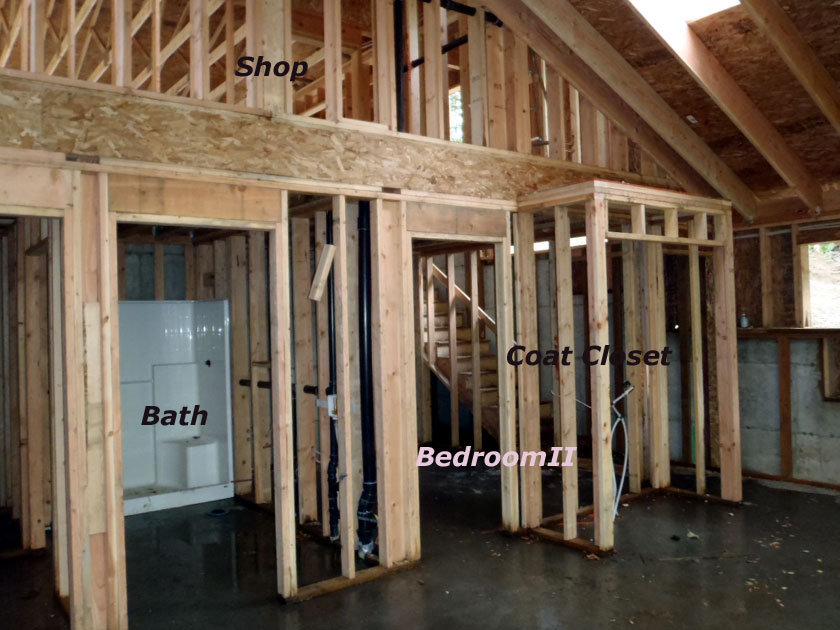

Interior framing complete
PEX tubing for the hot and cold.

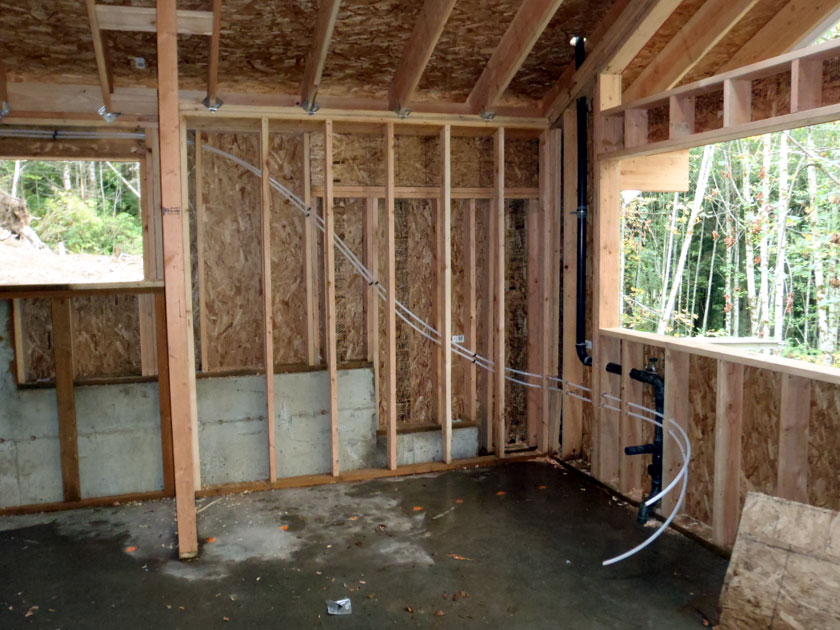

Here's the runs to the kitchen

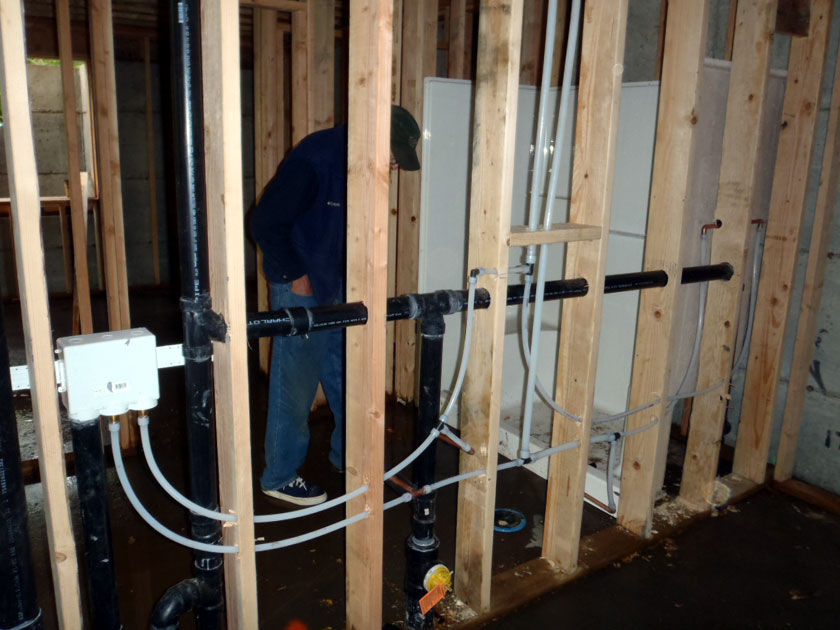

Examining the bathroom plumbing rough-in
End of September

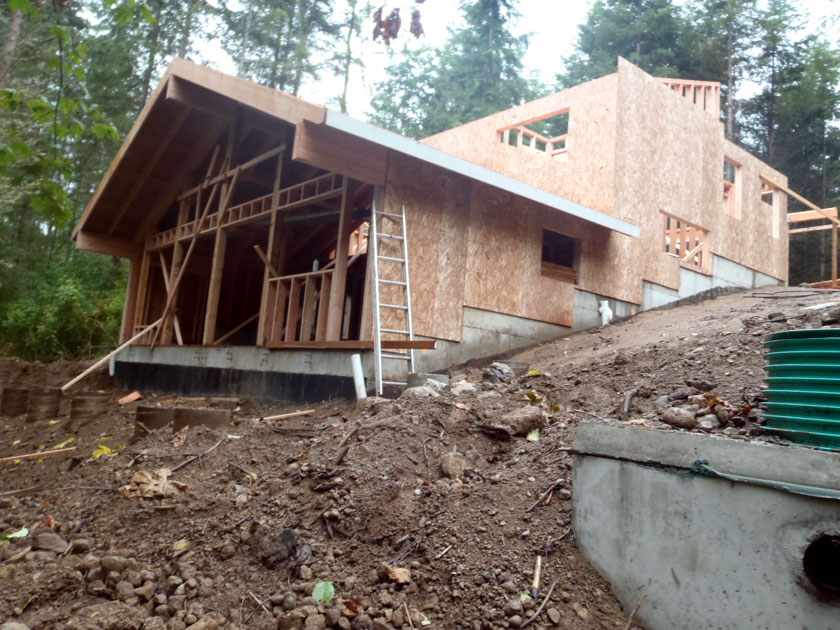

Lower Front View

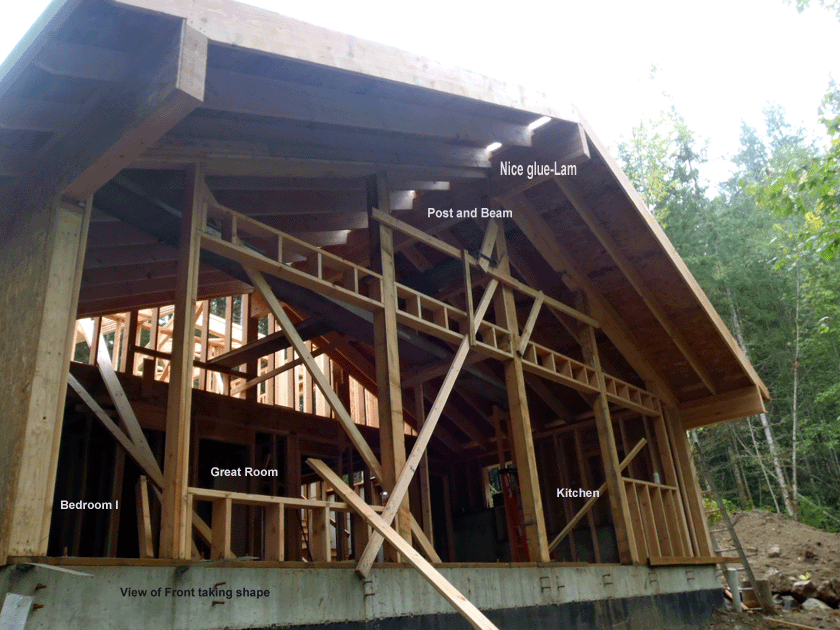

Framing of apartment coming together

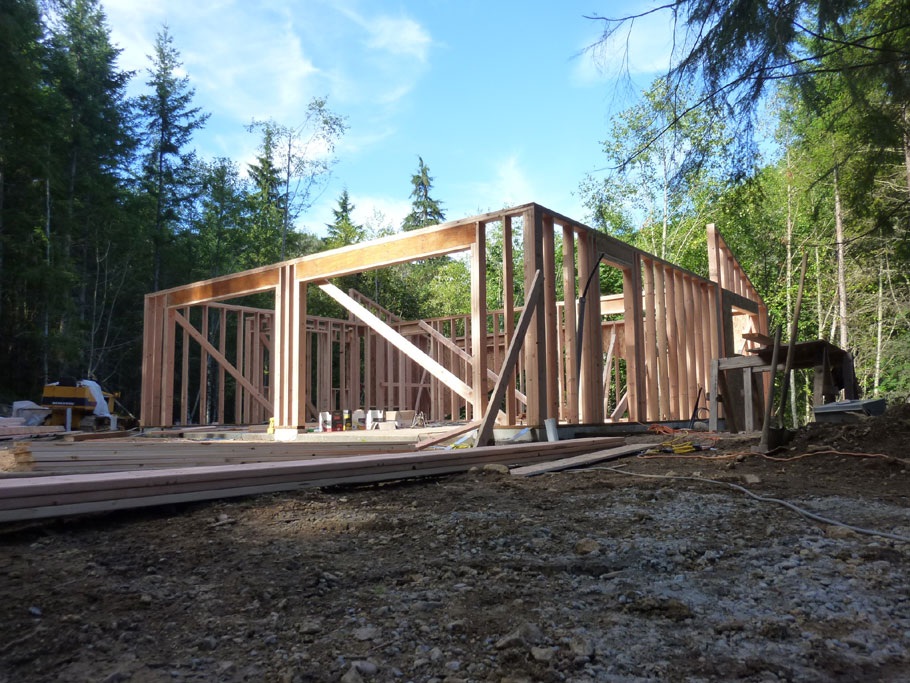

Shot of the 2 Car Garage Front

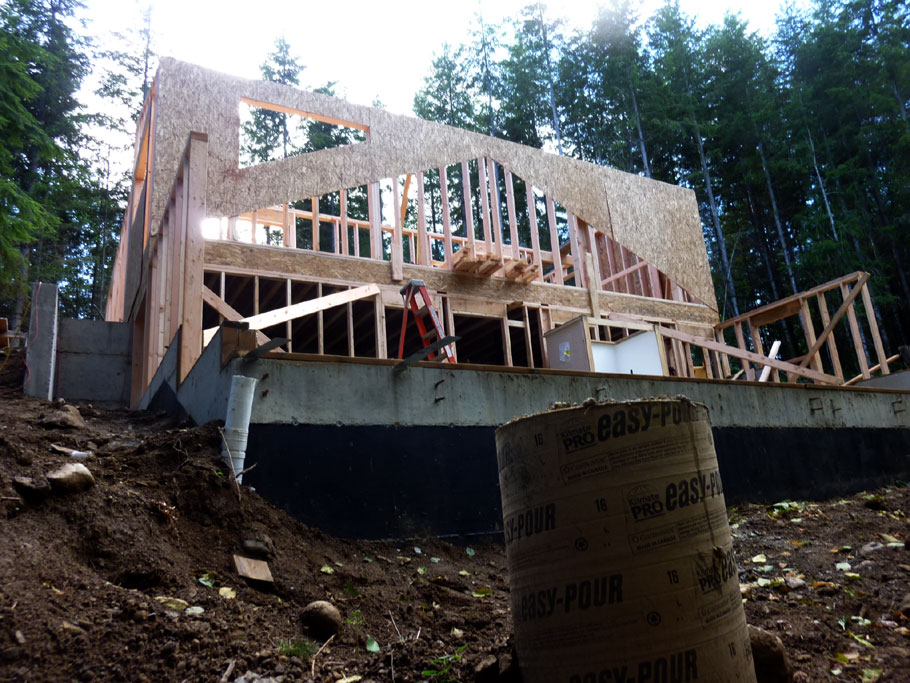

Apartment framing from below grade
Note the sonotube for the deck support in foreground

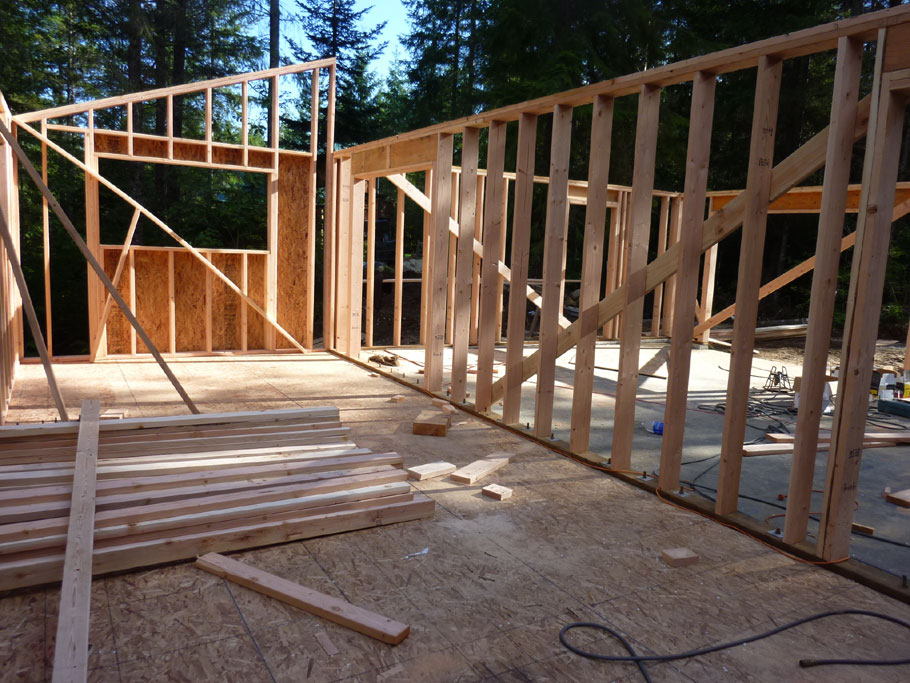

Workshop behind garage

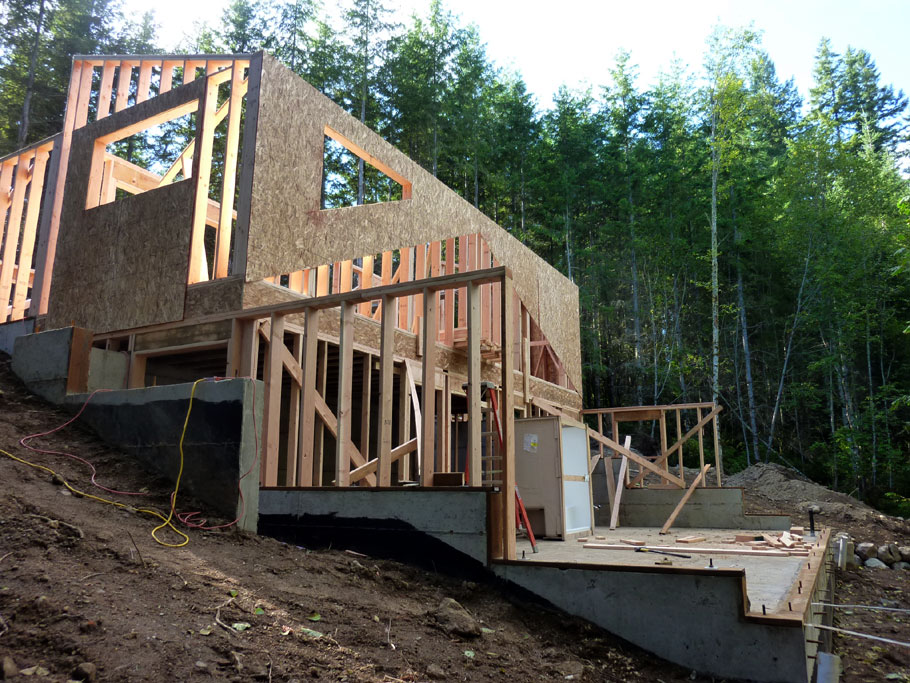

Sideview of the building

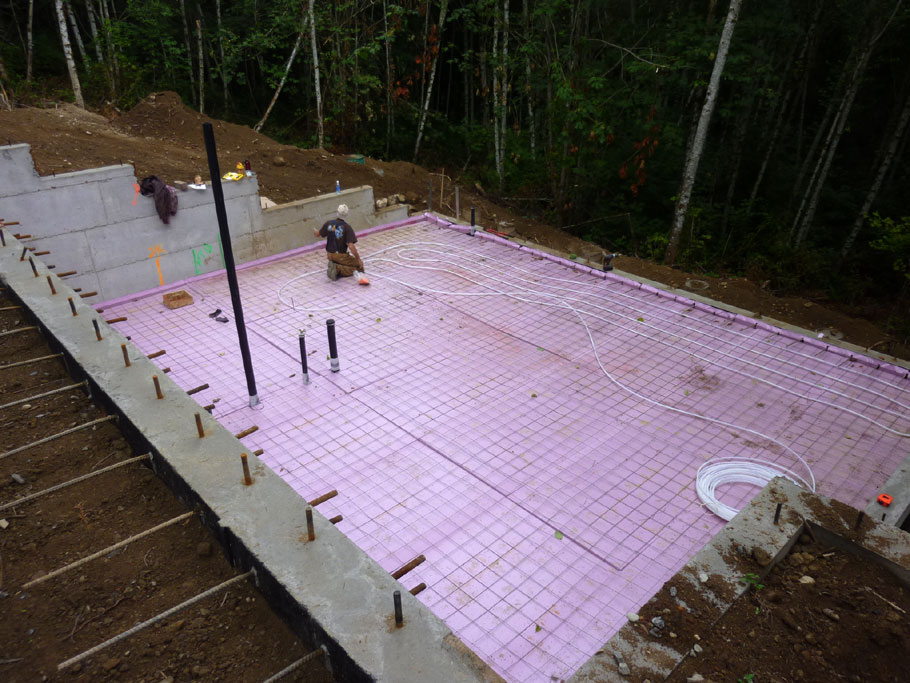

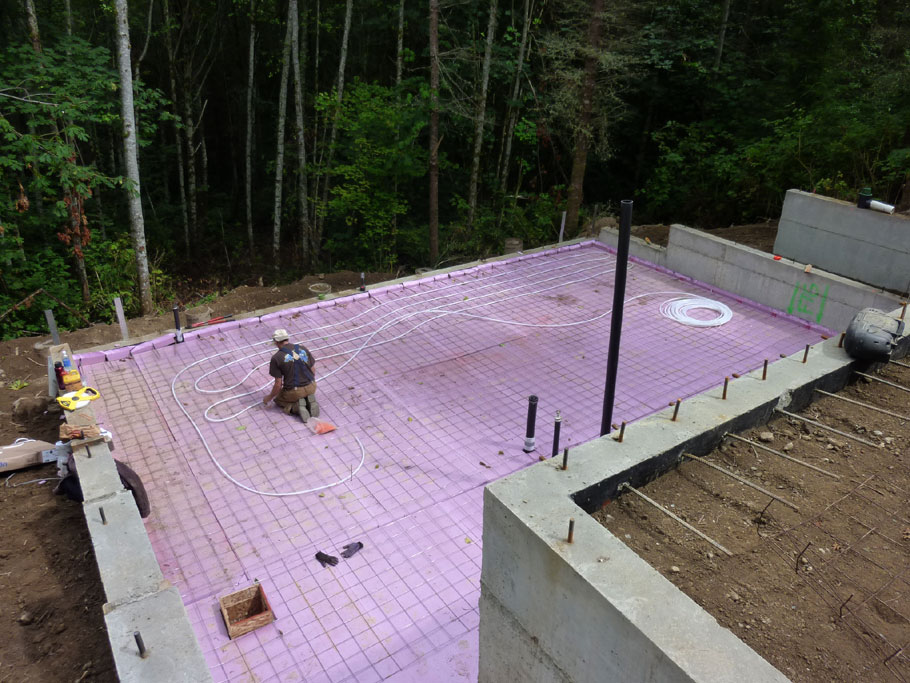

Installing the PEX tubing for radiant heat over the 6x6 grid late August

We'll pour a 4" concrete slab and encase the tubing. The heat will consist of circulating 140 degree water through the tubes

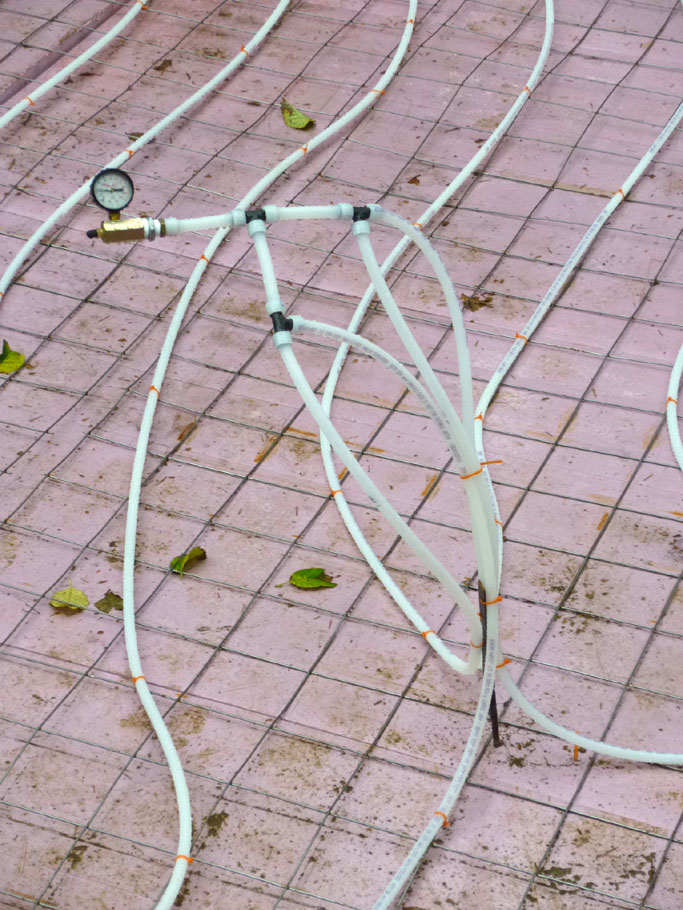

Test Manifold pressurized and ready to pour the slab

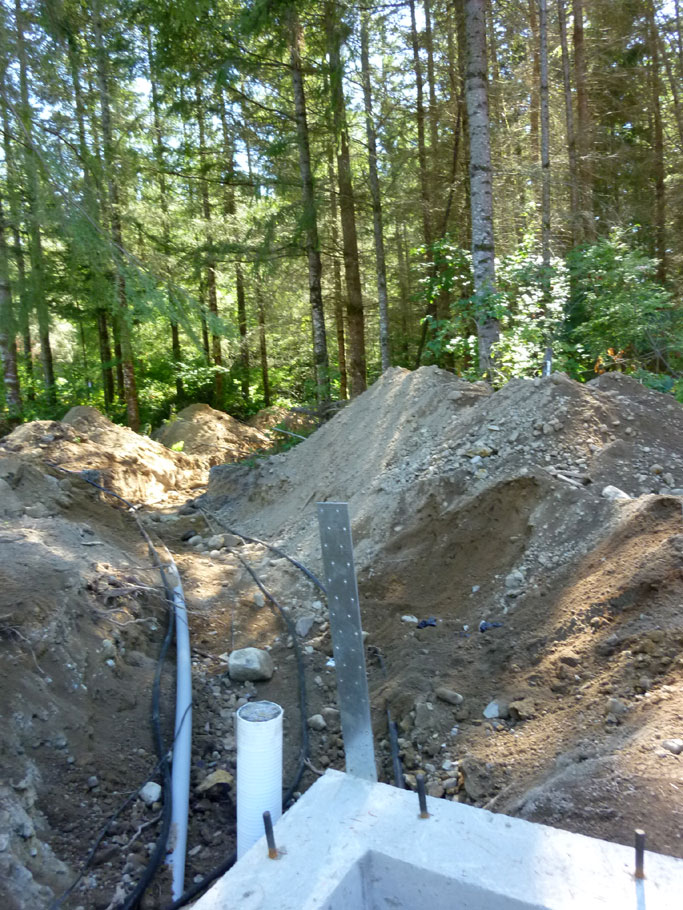

Utility Ditch
Note the 200 Amp conduit and telco, internet, gate control conduits

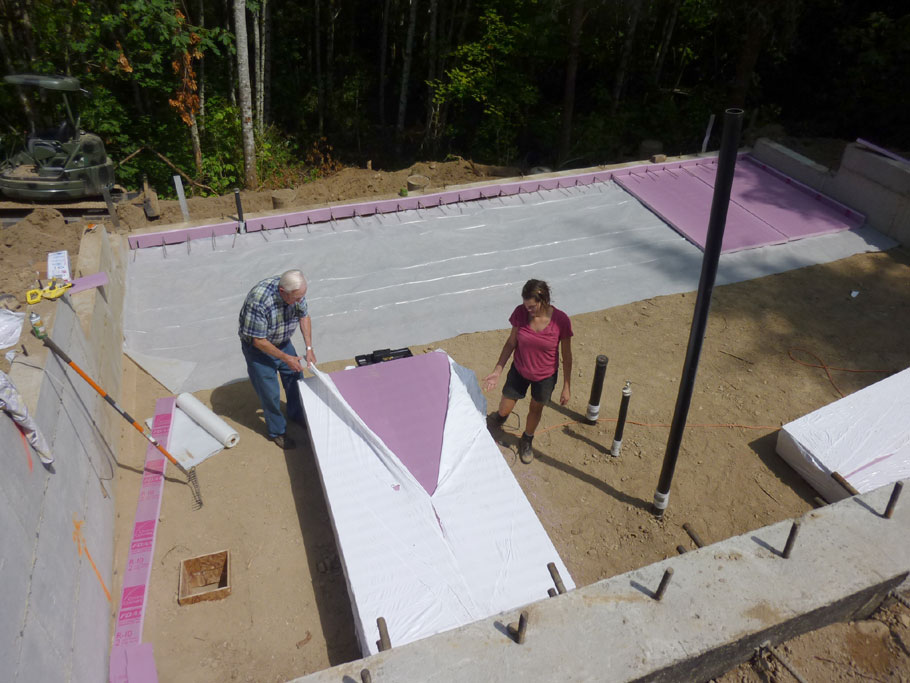

Shannon and her Grampa helping set R12 foam base for heated slab

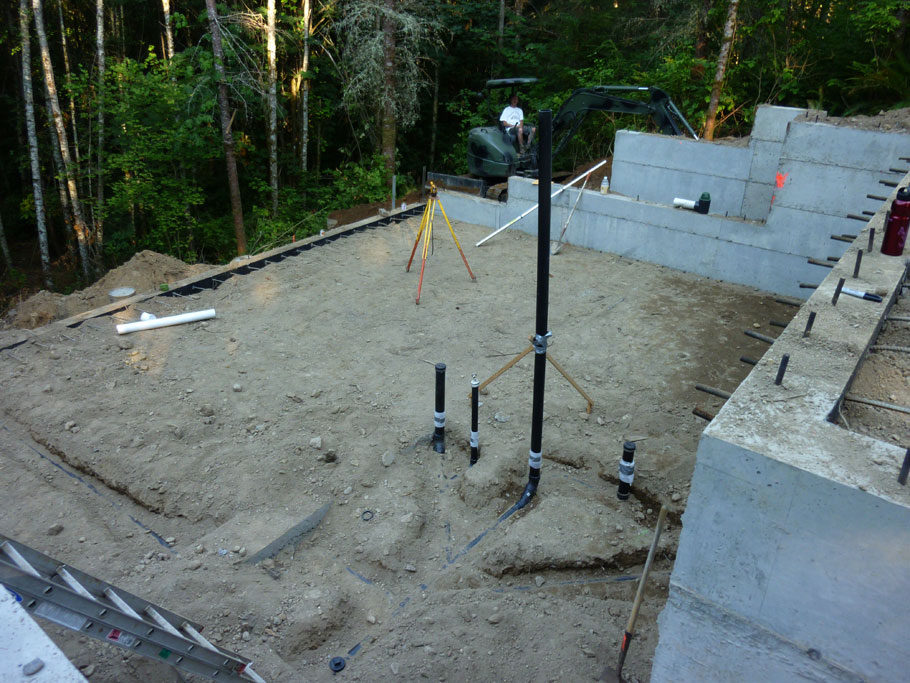

In- Floor waste piping installed and inspected

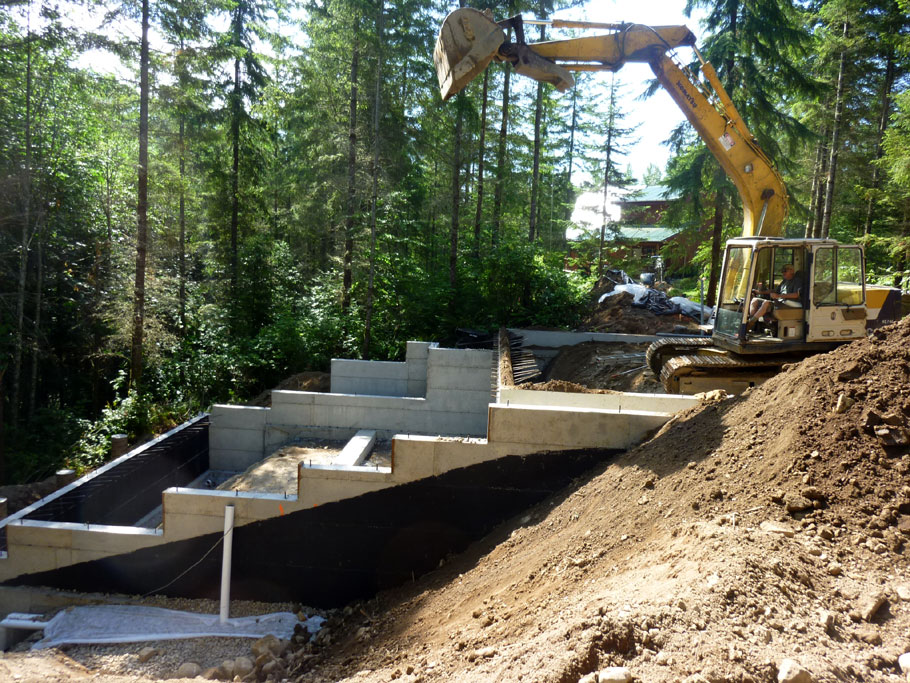

Backfilling the upper wall

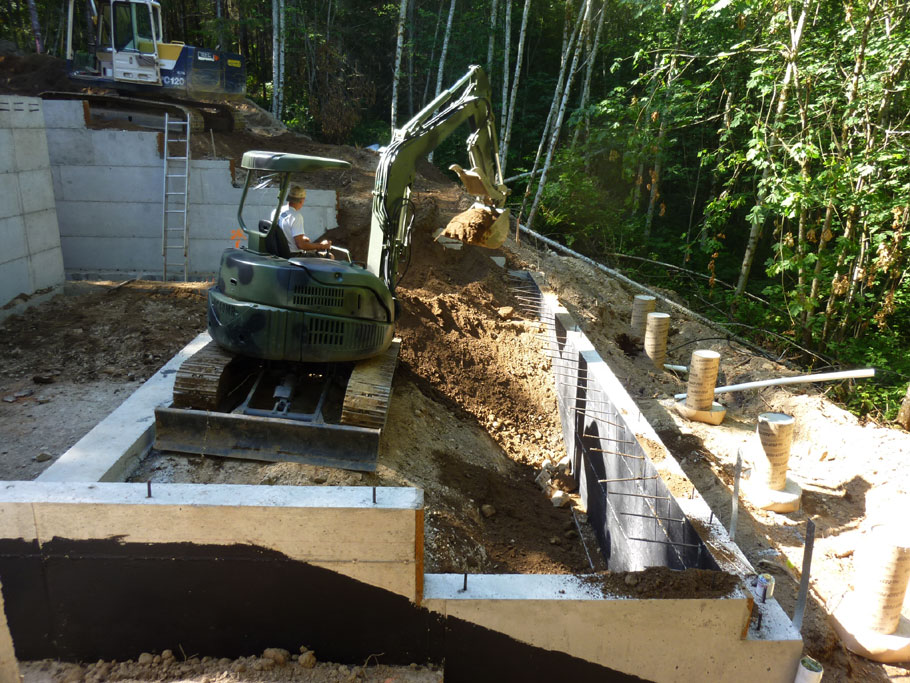

Backfilling the lower wall


Shot of the south side showing window well cutout.
Note the downspout and perimeter drain piping going in.

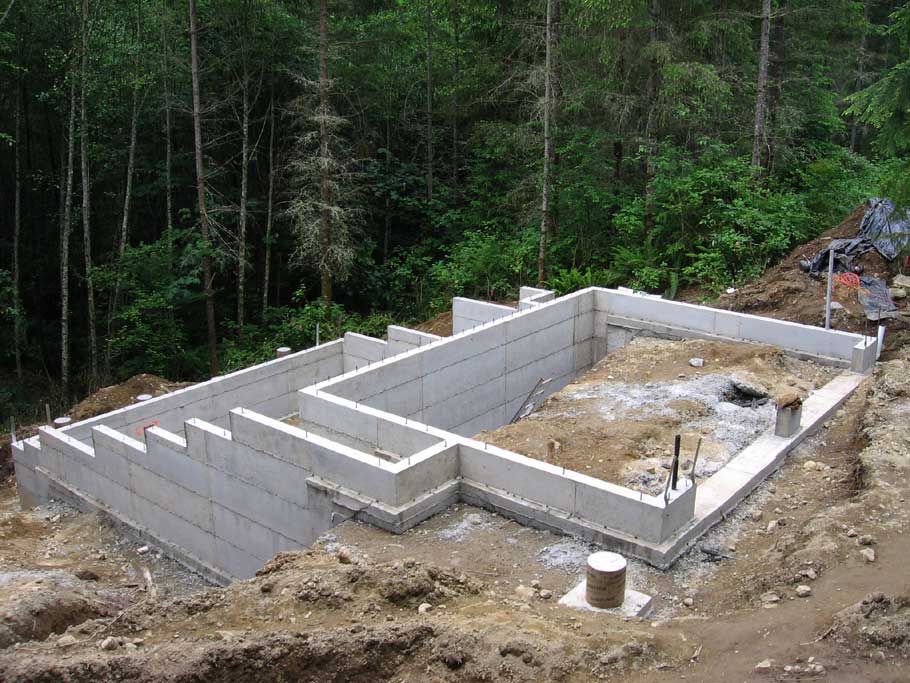

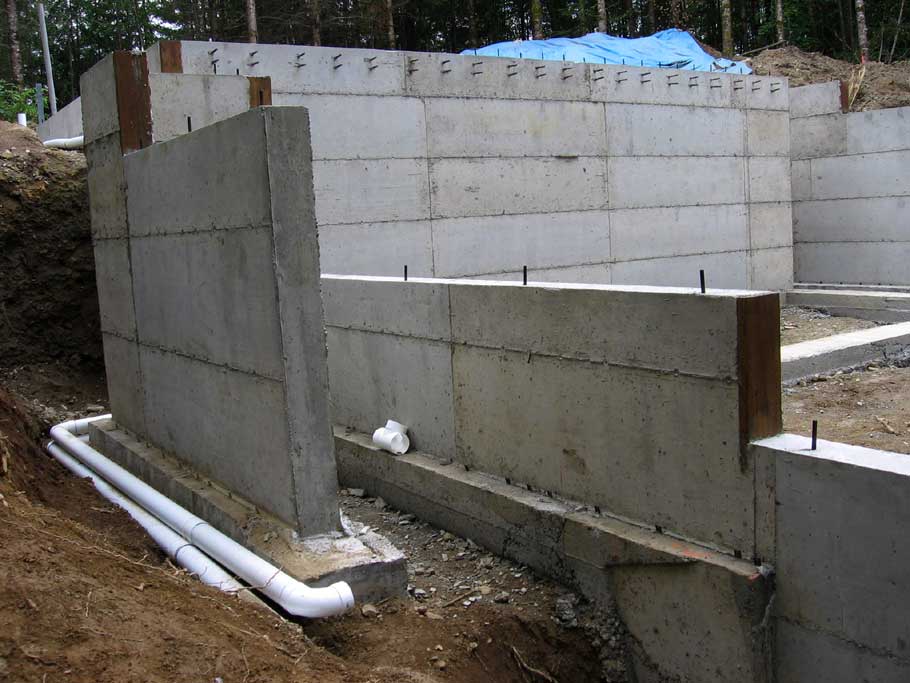

Completed foundation

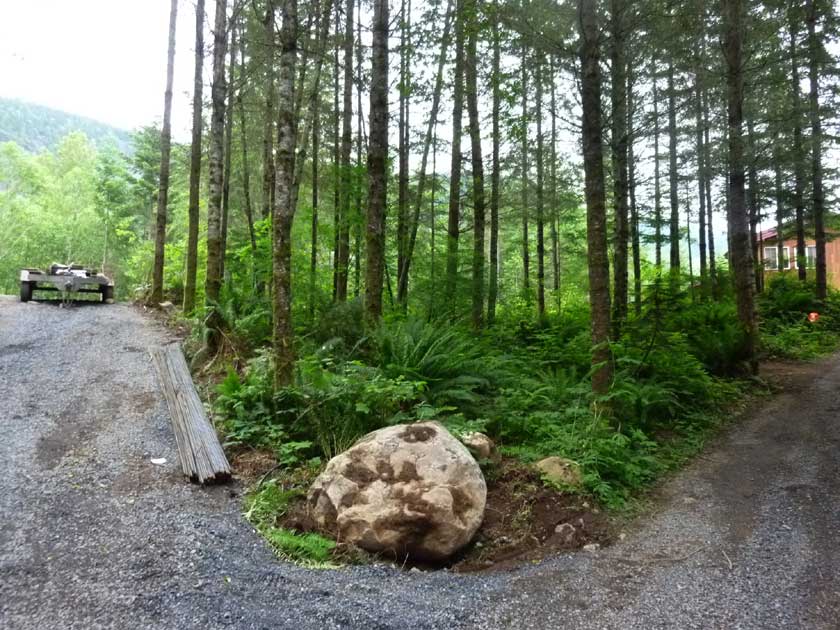

Shot of the new driveway spur on the left.
Right side goes up to the cedar prowhouse.
Note the cool rock that we dug up.

Clearing the lot

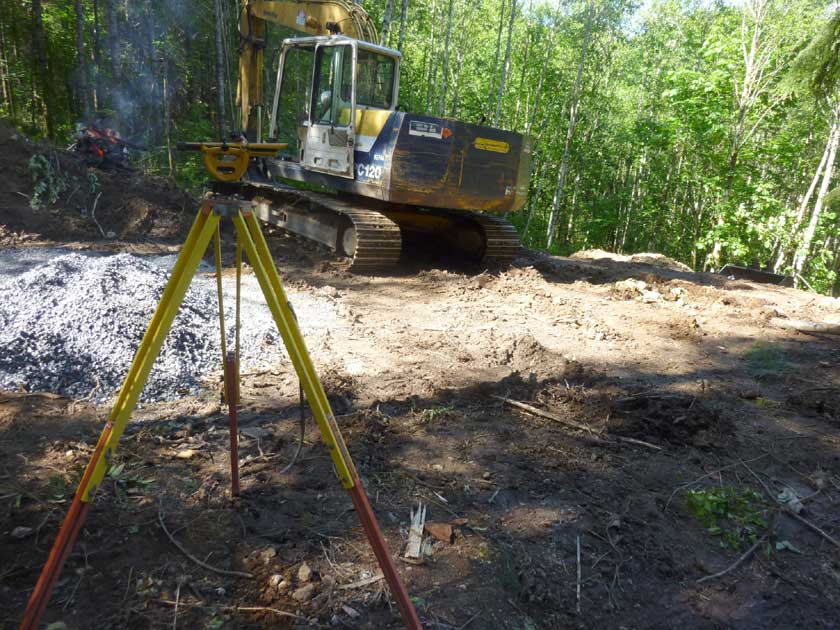

The major tools shown. Stump fire, Trak-hoe and Transit

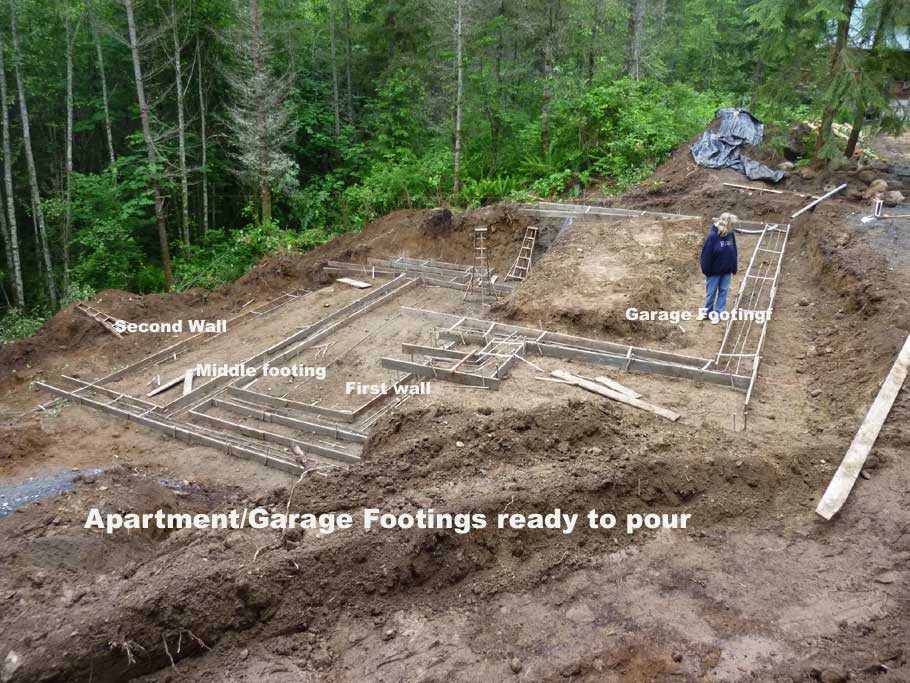

Footings laid out and ready to pour

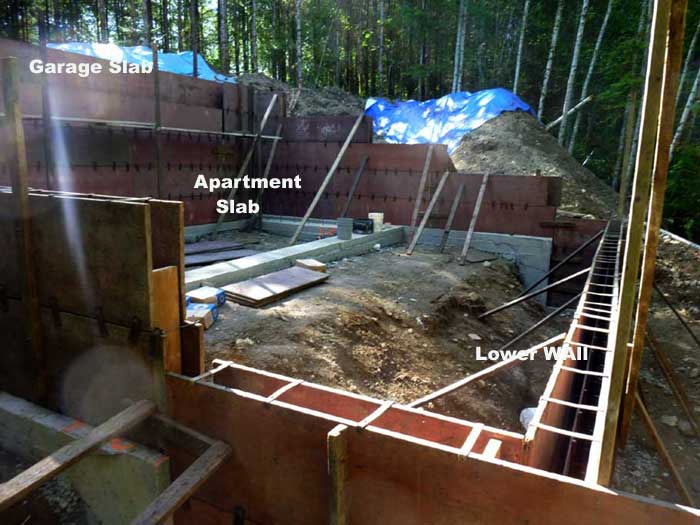

Shot of the foundation walls just prior to the pour

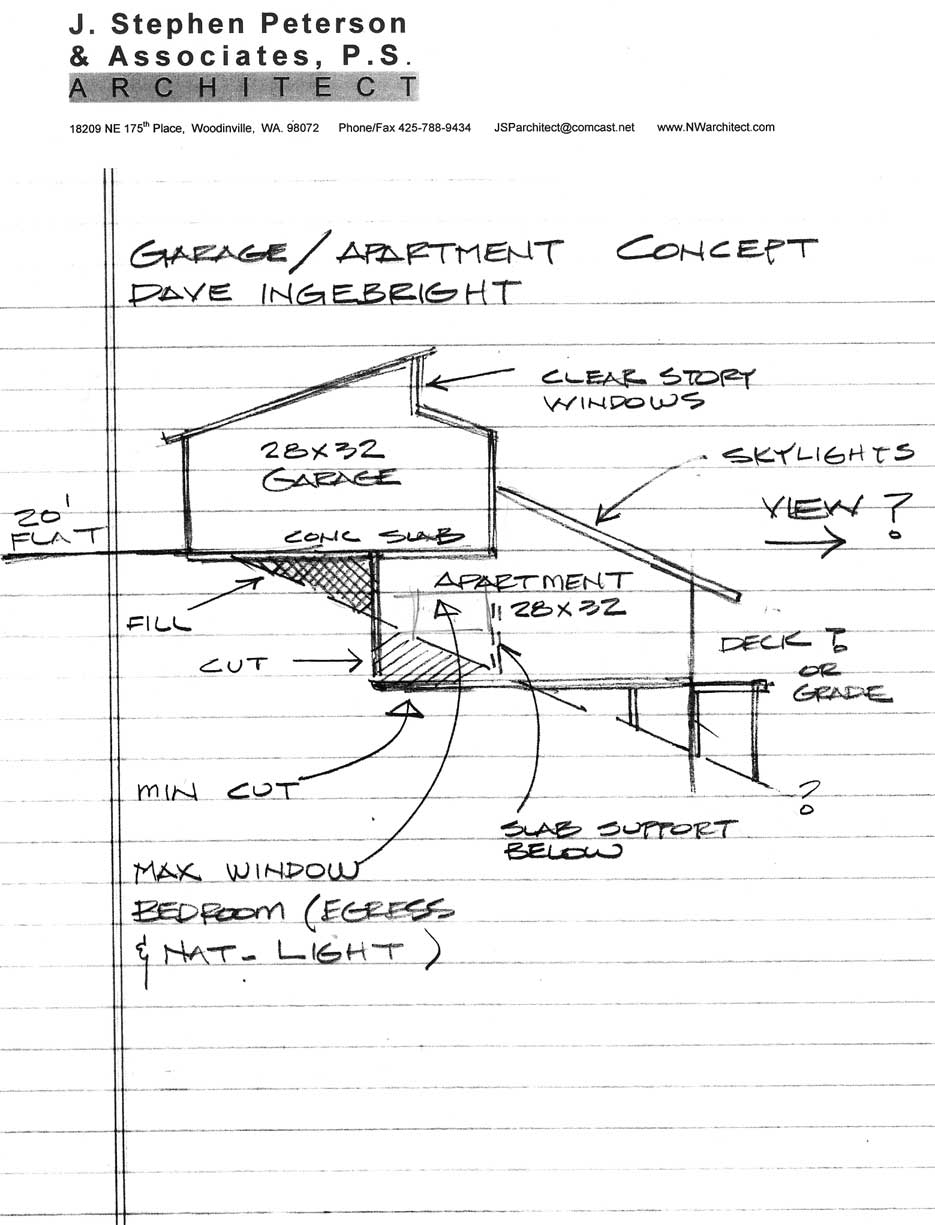

This is the sketch from Architect Steve Peterson after we met and I explained what I wanted.
We discussed my rough sketch


 A visit to the building site, a couple more meetings and Steve and I were able to hammer out the rest of the building layout. It included a shop space and bathroom in the garage and a generous 800 square foot 2 bedroom Accessory Apartment below. This experienced architect used his skills to fit the design into the surrounding terrain and make it a truly "eye-popping" design.
Link to Steve's Website


September 2009
This is what Dave found on the Internet. Plain crackerbox

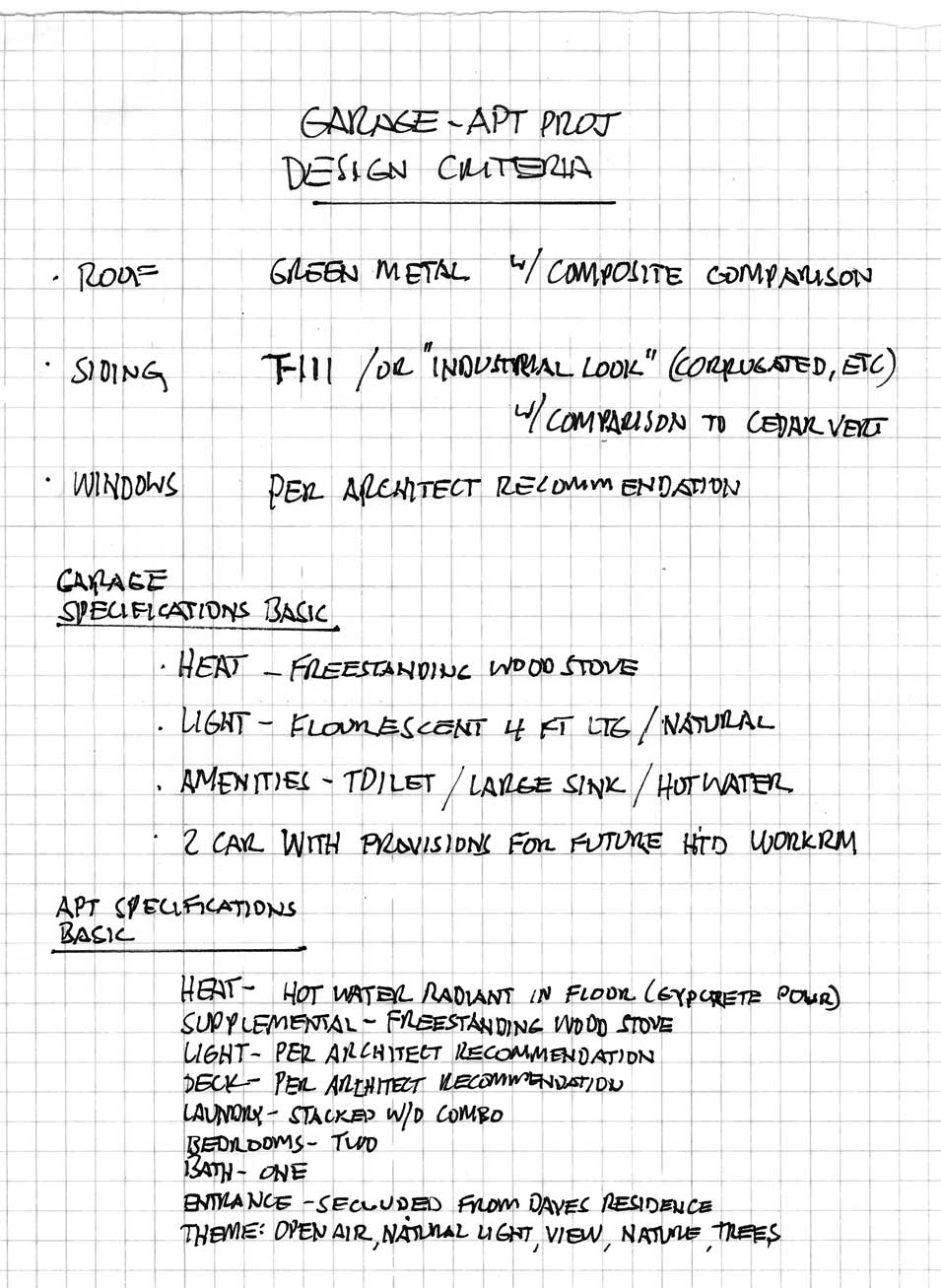

List of dave's design criteria

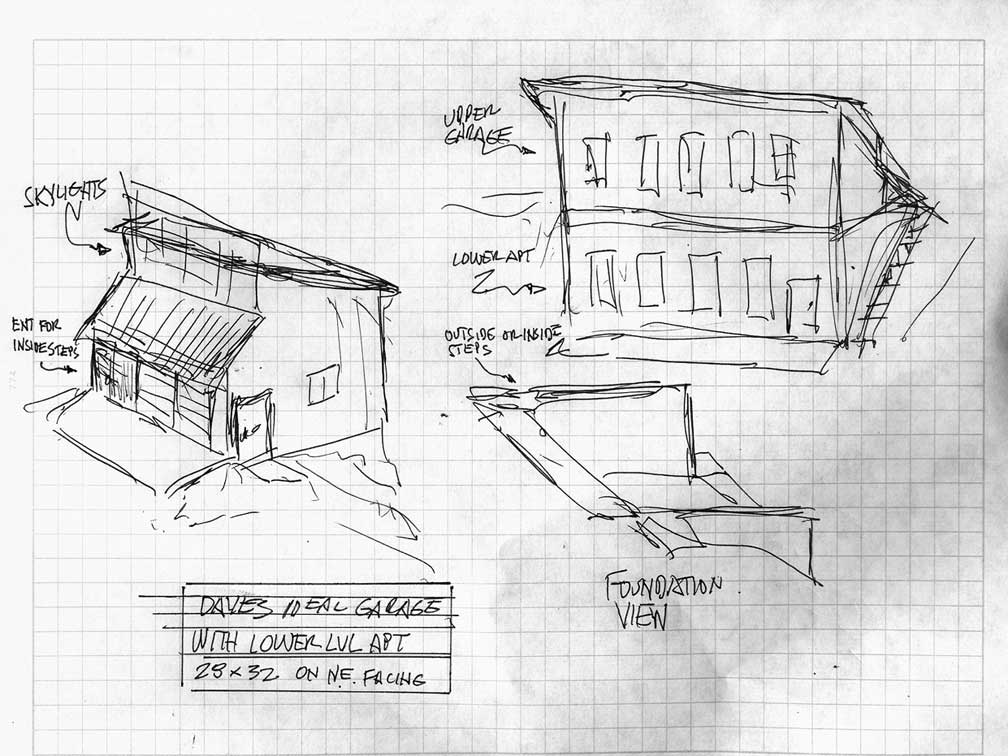

Dave's rough Sketch
This is sort of what was wanted.
Two levels with an apartment dug into the hillside.  Large garage-shop above with lots of natural light

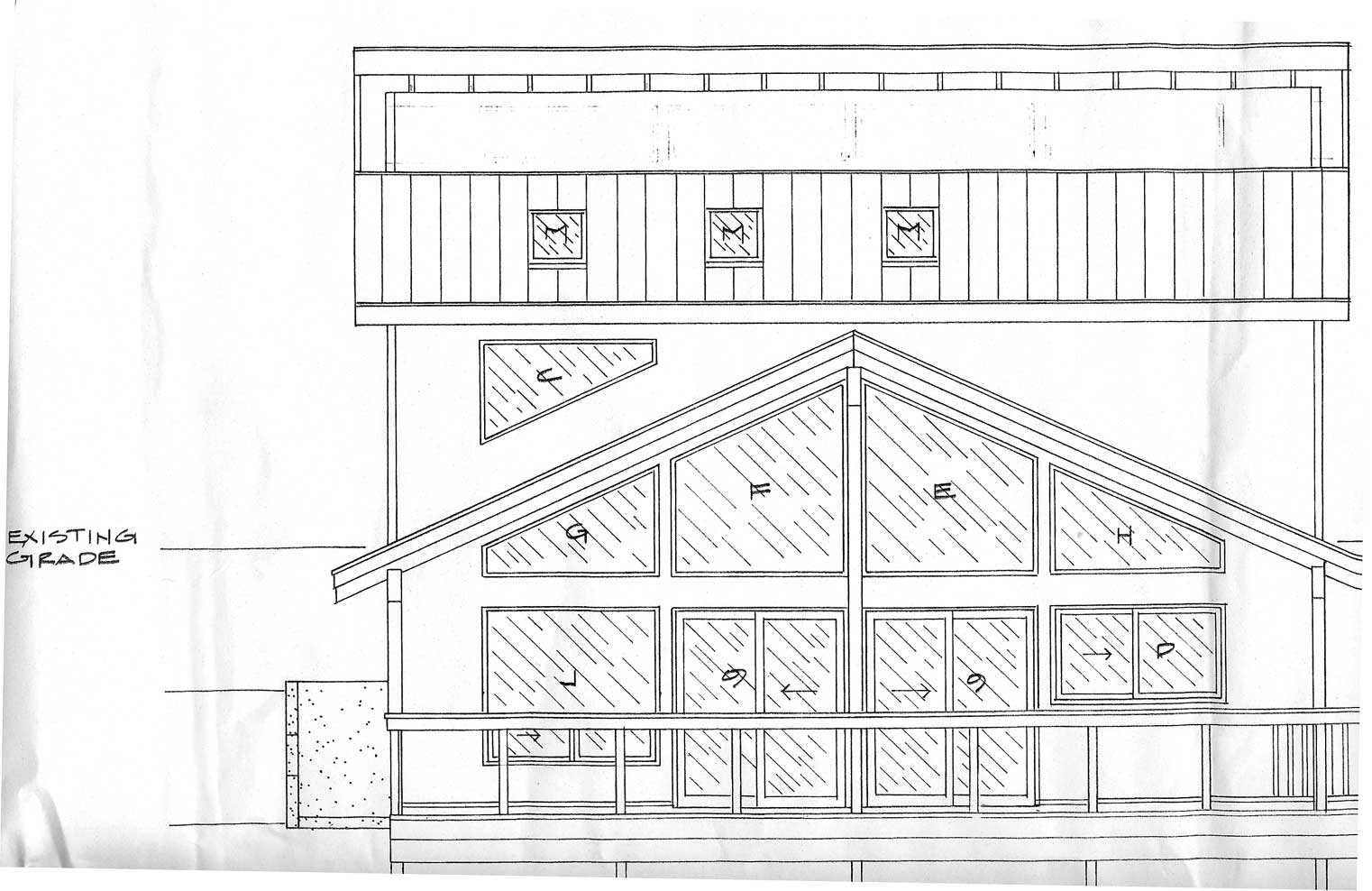

Architect sketch : View from the East







The decision was made to move ahead!

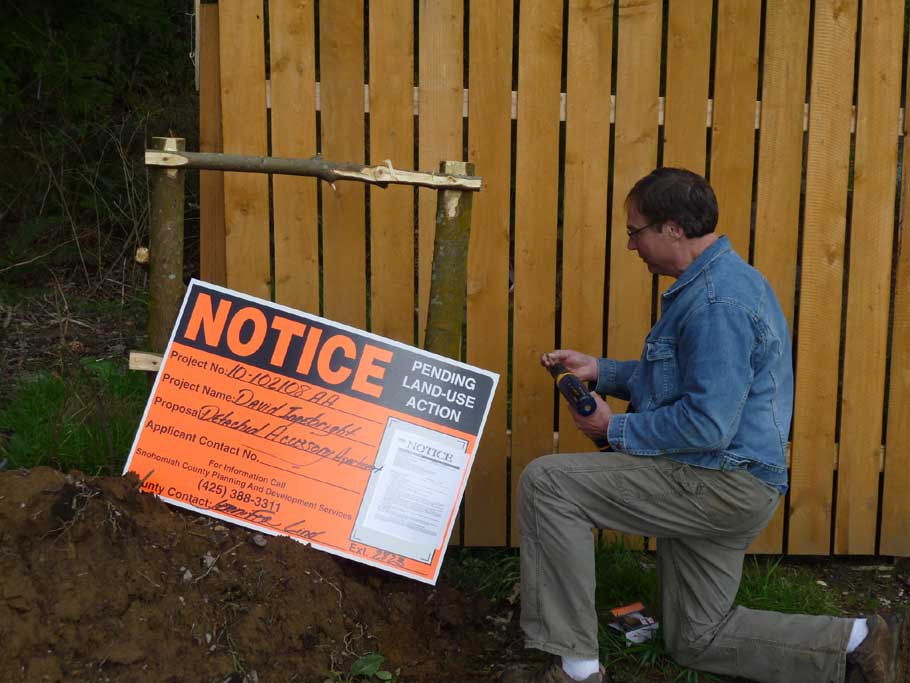

Getting started:  Final touches to county-mandated sign mounting. Note the departure from "required" 2x4 mounting

Proposed Site Plan as sent to the county.

County required a site review due to 250 ft proximity to Jordan Creek.

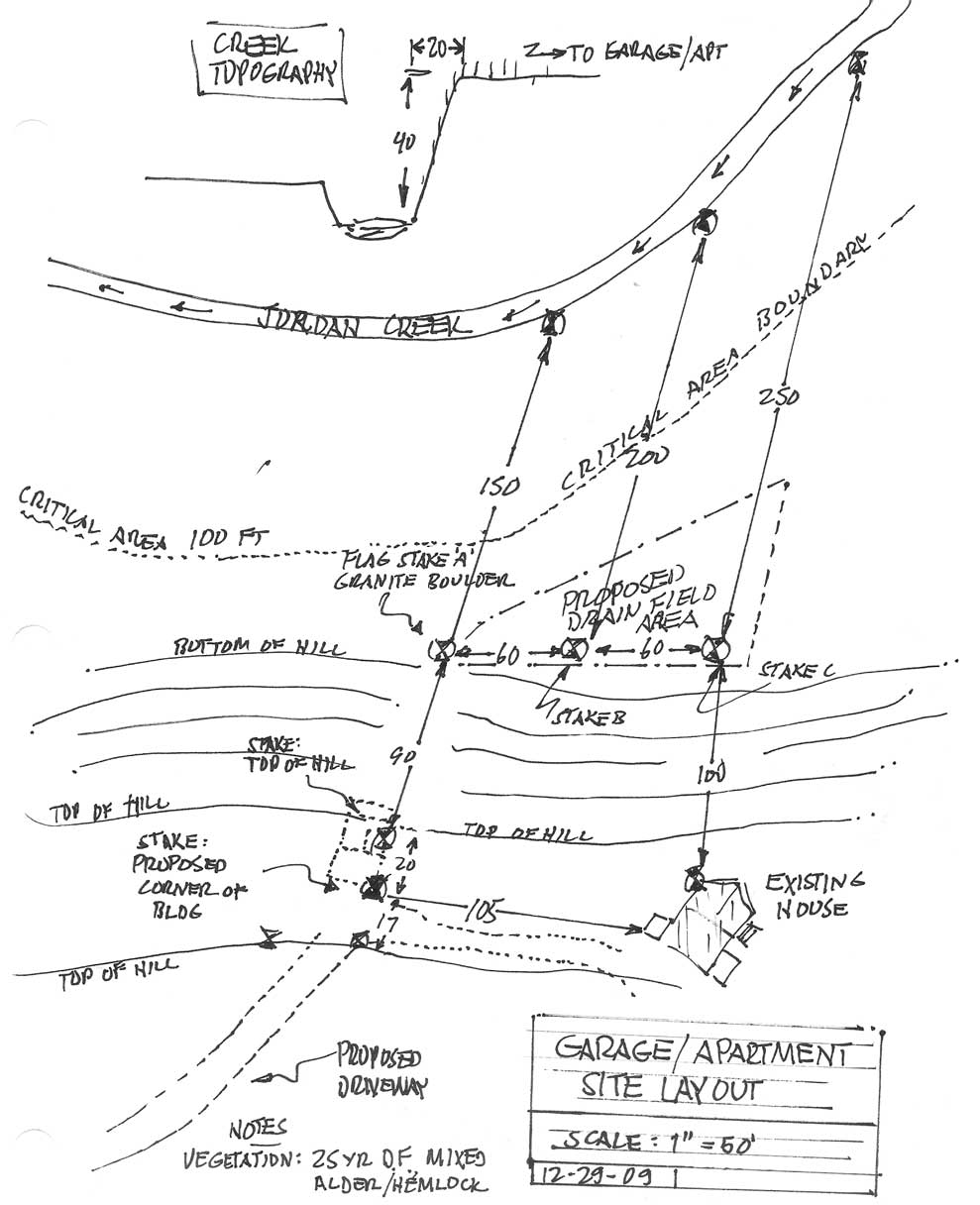

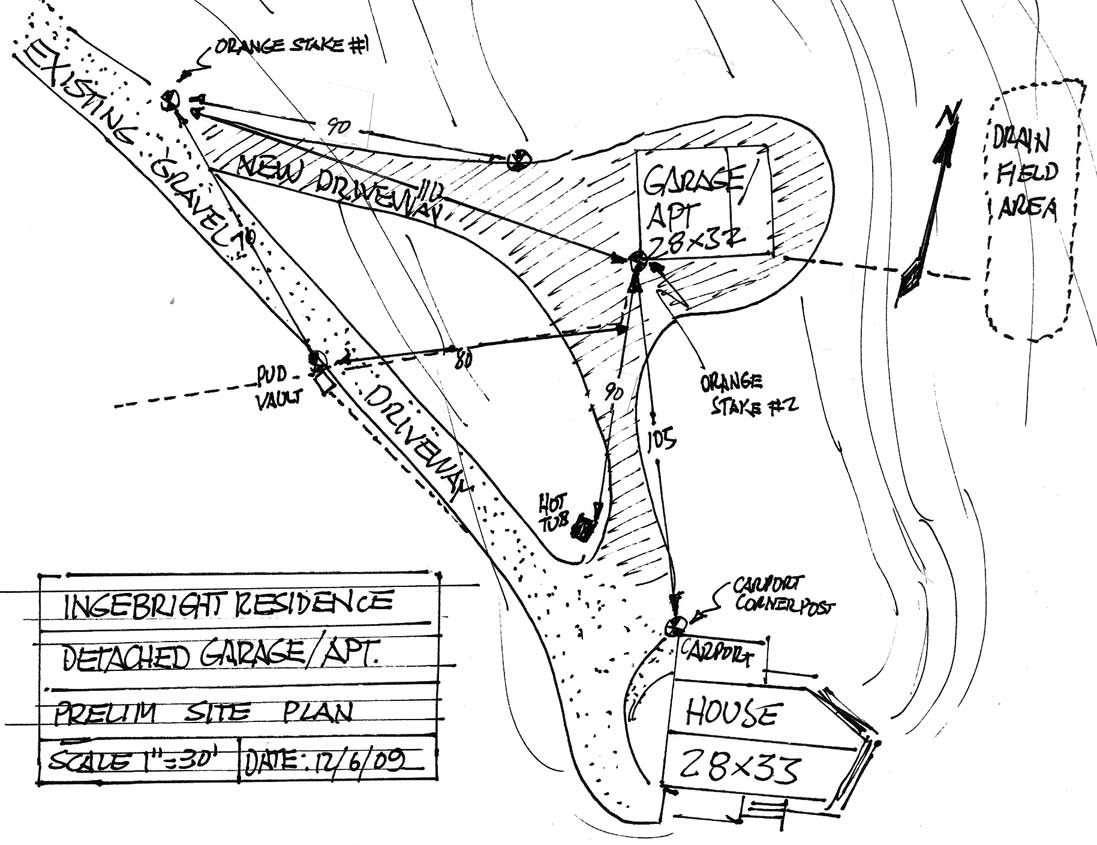

Here's the hand-drawn site plan with exact distances from building site to the creek


                         Project Chronology
2009

Sept- looking on internet for stock plans
Oct- talked to several builders got ROM estimates for proj
Nov- Contacted architect liked plan, site visit
Nov- Meetings with architect Steven Pererson
Dec- Prelim meeting with county with plans and permits. Their focus was on creek proximity. Architect accompanied.

2010
January - Plans to three local contractors for bids
March - First formal meeting to obtain building permit
March - 2nd meeting with building dept. Plans accepted!
March - 30 day comment period for the conditional use permit needed for the accessory apartment.
April- Worked on project sequencing planning
April-Selected winning Contractor:
   On the Level Construction
May-Began clearing the lot in a serious way
June- Brought in a Trak-hoe and began excavation
June-Foundations laid out and poured concrete
July- Backfilling and lots of dirt work with excavator
August- Final grading of apartment floor and garage floor
August. Final grading and set drainage away from building.
August- Final prep for slab pours, one heated, one not
August- Installation of 200Amp power conduit and telco
September- Slab pours
September- Building is begun - It's been a friggin year!
October- Framing Complete, Windows installed
October- Plumbing rough-in complete
October- 200 Amp PUD service approved, began wiring
November-Siding completion, final pour of entries
November-Exterior and Interior entry doors installed
December- Garage Doors installed, wiring at 30%
December- To "Lockup" all doors and windows installed

2011
January- May -Wiring
June- Landscaping, wiring, rockery
July- Propane gas line, wiring, rockery
August- Insulation, garage  openers, wiring
September- Wiring and Septic
October- Septic, Drywall and painting
November- Radiant Heat and hot water heat fab
December- Finalize elect and mech installations

2012
January- Final inspections of elect and building
January- Order kitchen cabinets, bath cabinets
Feb- Appliances ready to install, trim selections
Mar- Apr- Install kitchen/bath cabinets
May- Choose granite remnant countertops
June- Trim installation
July- Bookcase fab studio and apt
Aug- Time to contemplate landscape plan
Sept- Washer and dryer install
Oct- Final touchup, panic room door
Nov- Ready for occupancy

2013
May- Install pressure-boost water-pump
June- Install Ceramic Tile
September- Install DirecTV HD-DVR








View the Project Master Sequence Plan
