Greenhouse Project

Here we build a greenhouse centered around three tempered glass panels



Prelim rough sketch of the basic layout we wanted

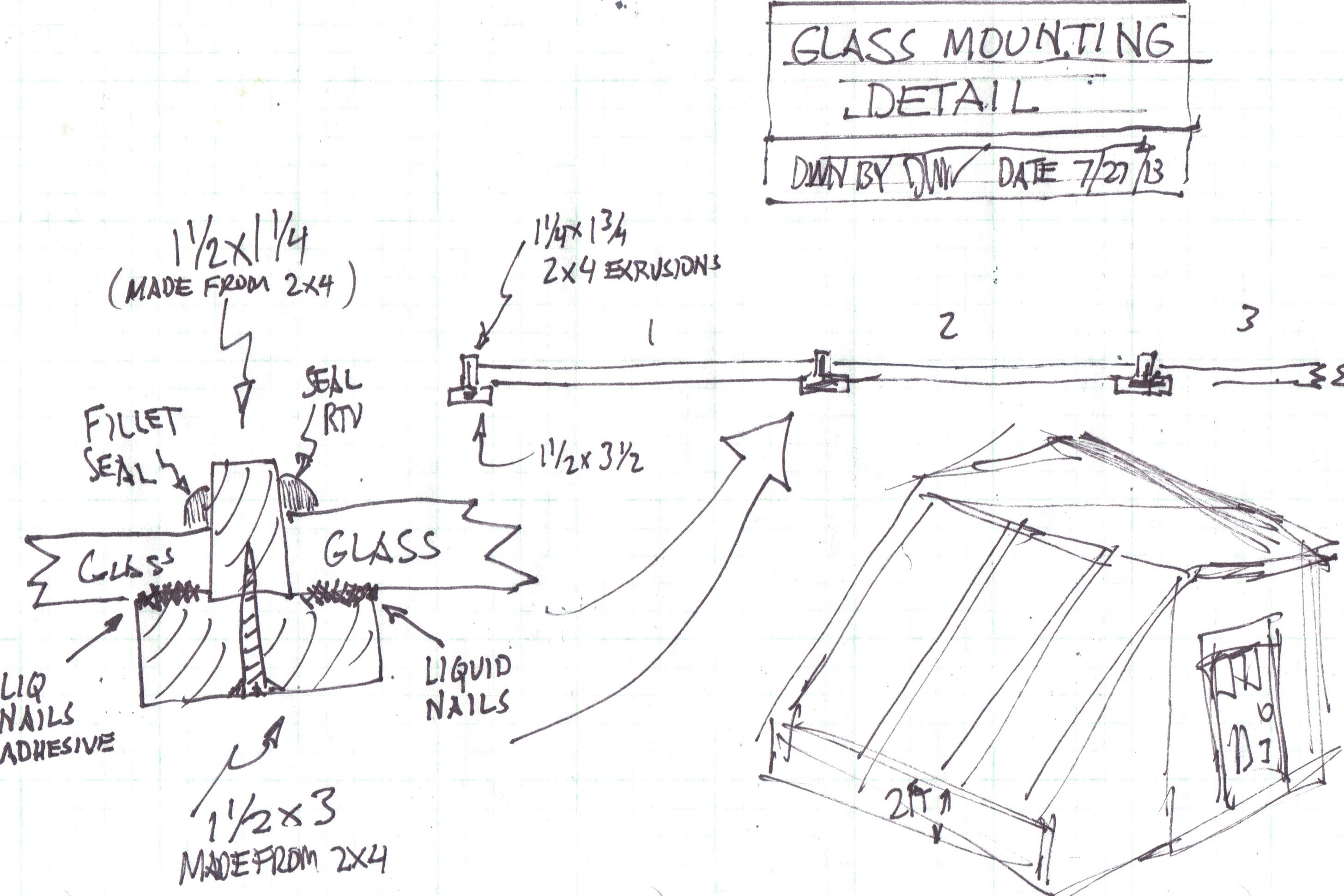

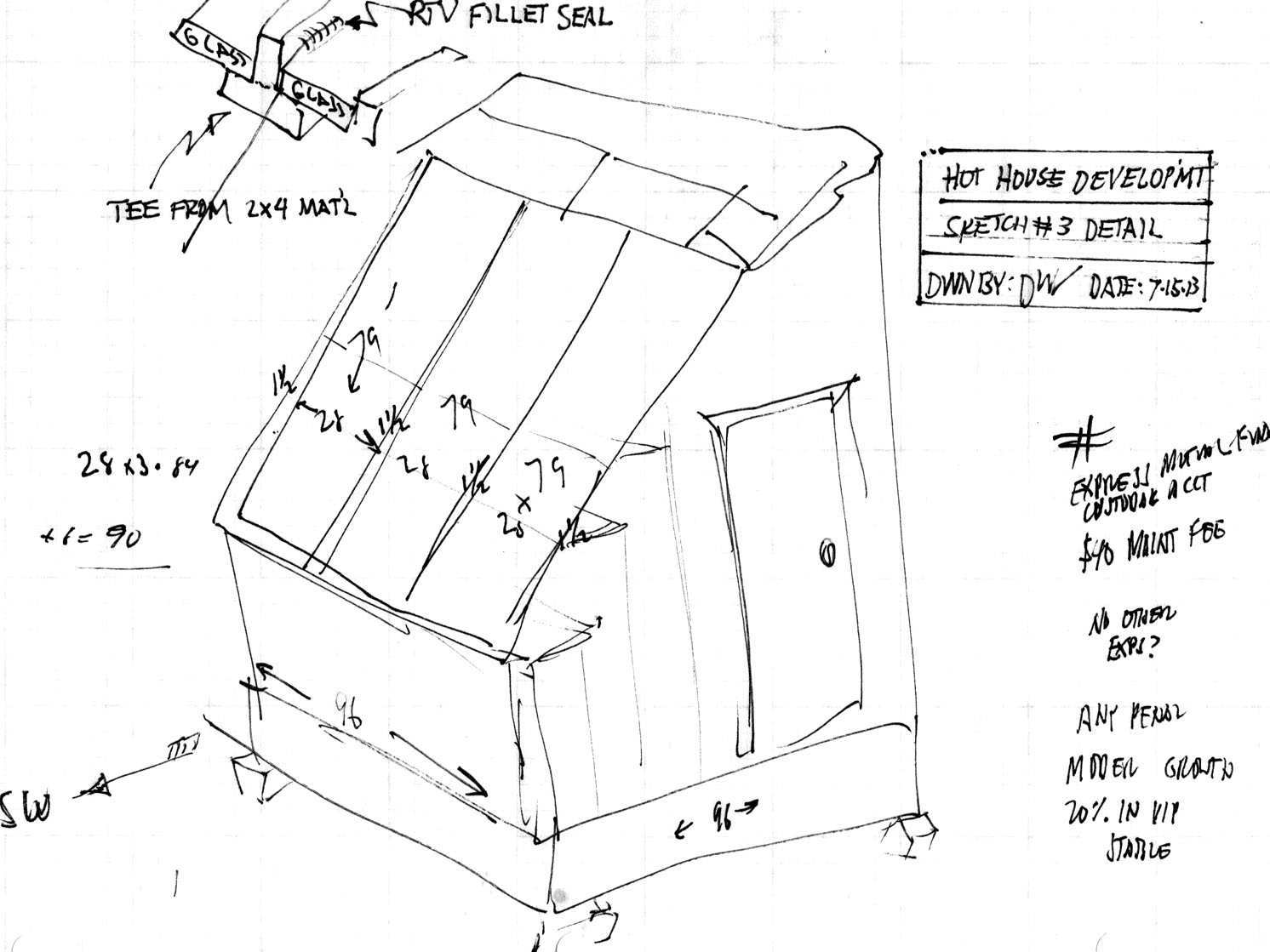

Detail sketch of the glass frame cut from 2x4 lumber


This site has a clear view to the southwest.

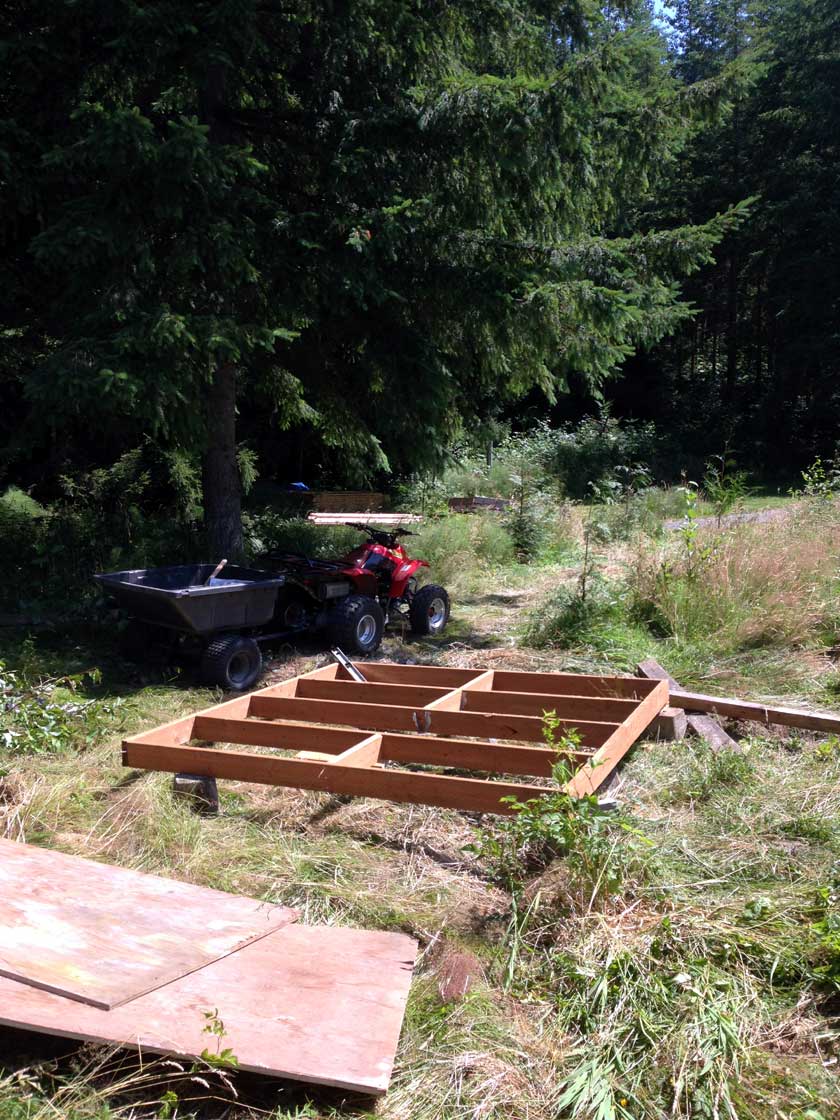

We level up the 8'x8' platform on pier blocks

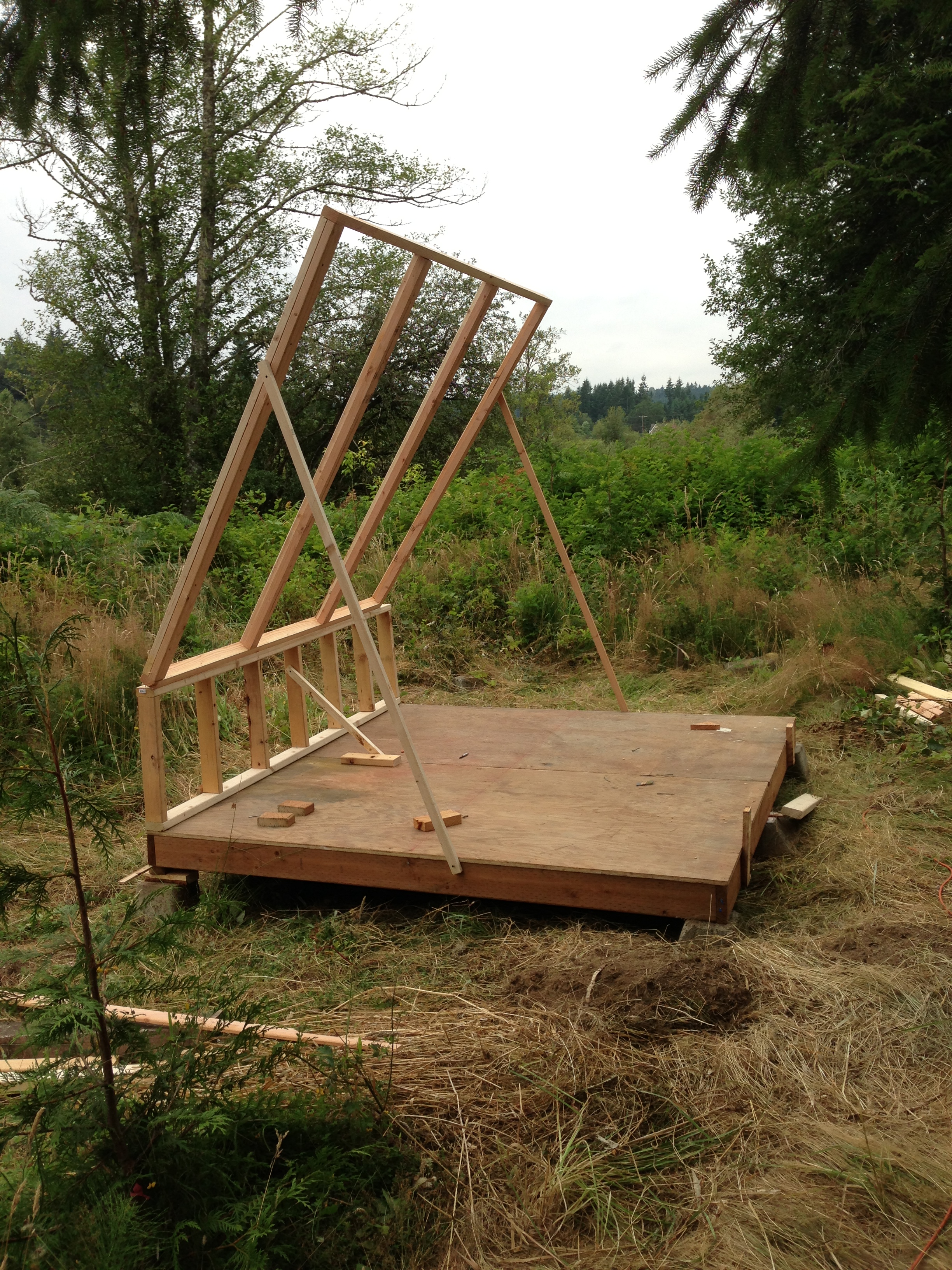

The frame for the three windows was built separately and brought to the site.

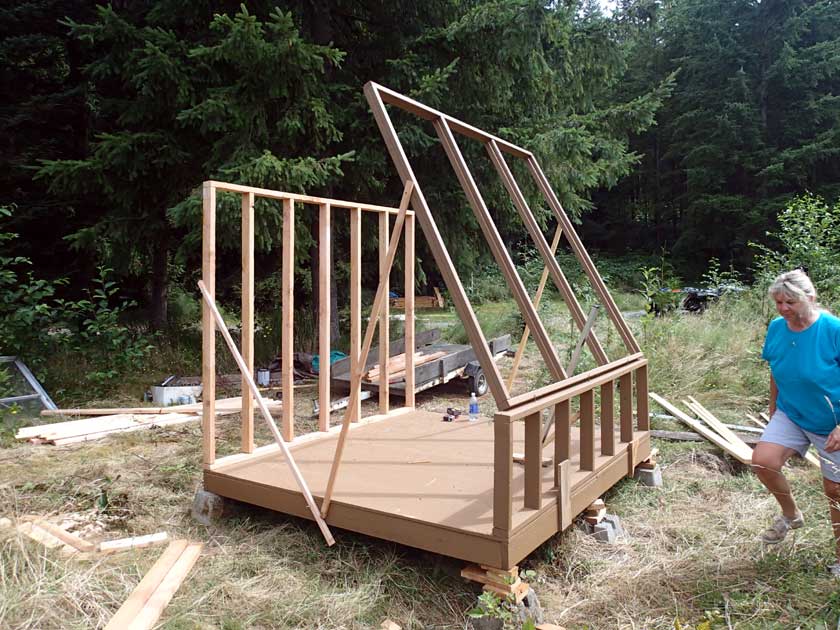

Building is taking shape

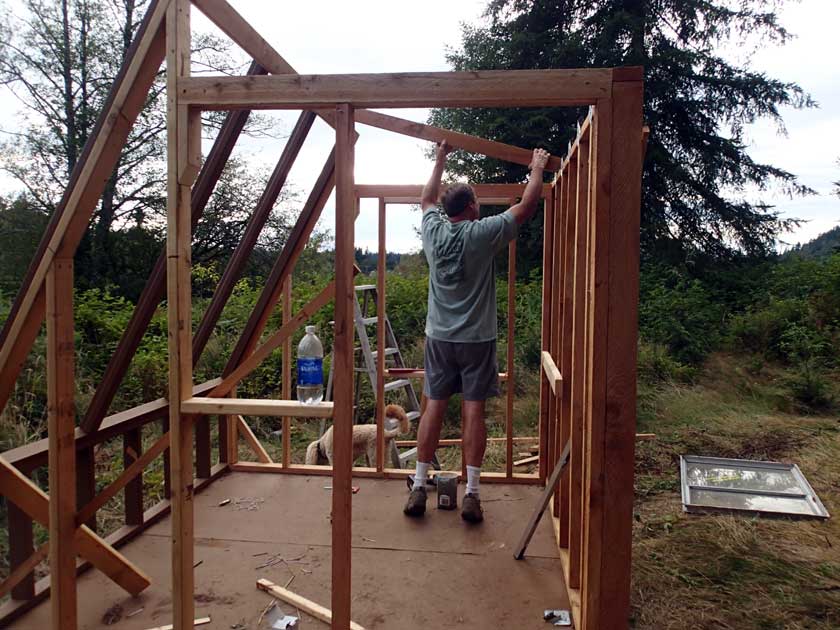

Shot of Dave fitting the rafters

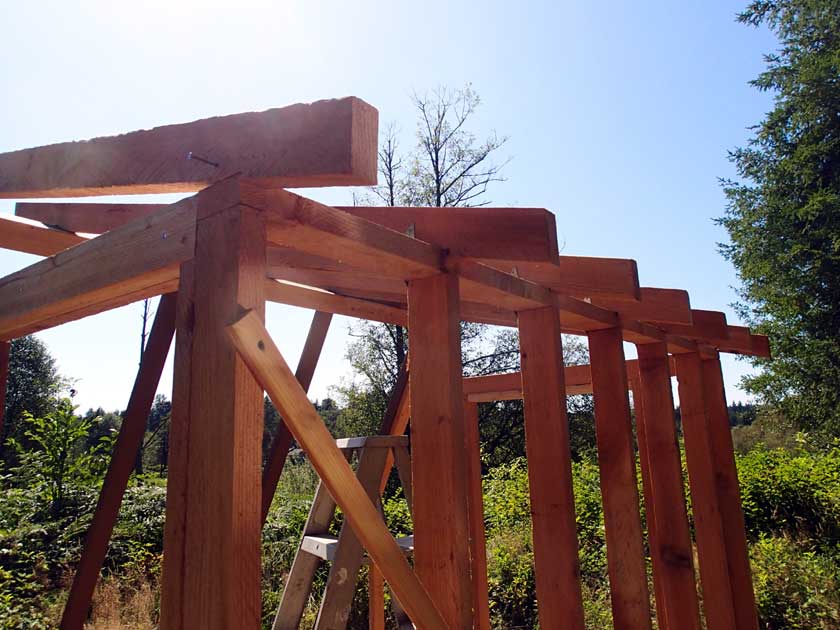

Notching and fitting the rafters took the most time



We used some framing clips left over from the last project

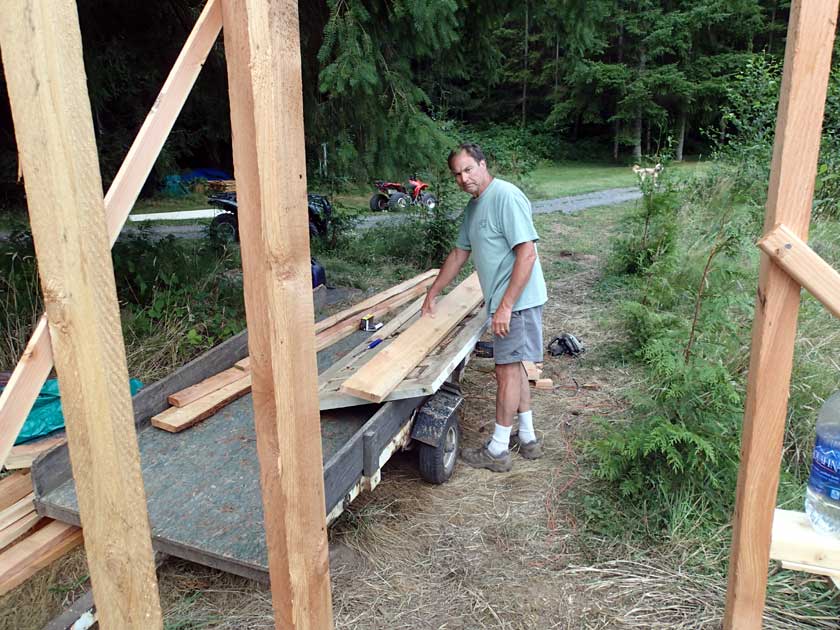

We used our utility trailer as a workbench

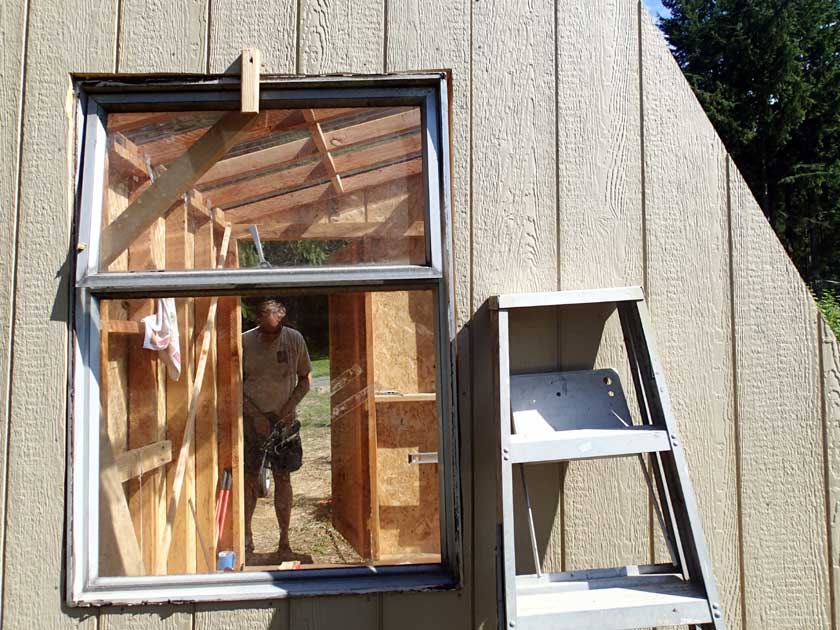

Fitting a used window for the north side

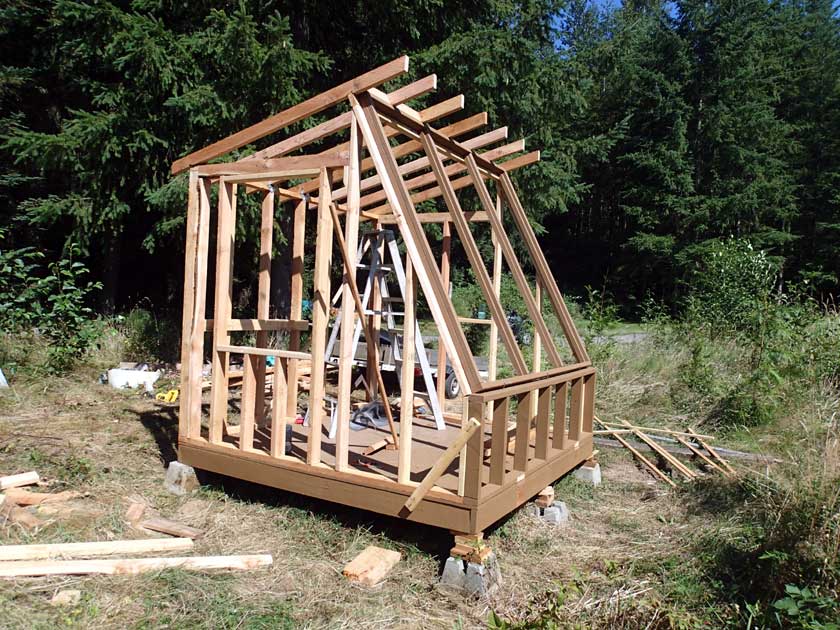

Framing complete


Corrugated solar-rated plastic panels for the roof

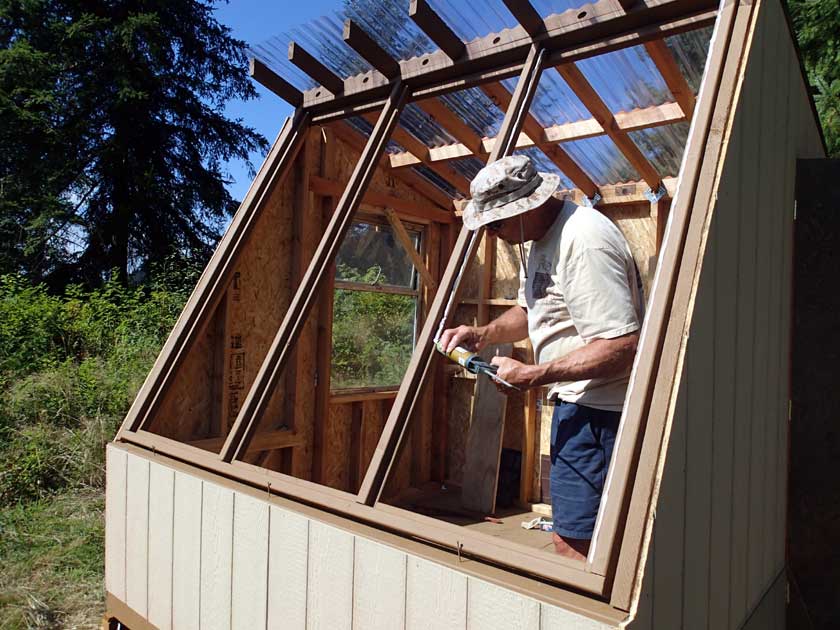

Applying liquid nails to the inside before mounting the glass

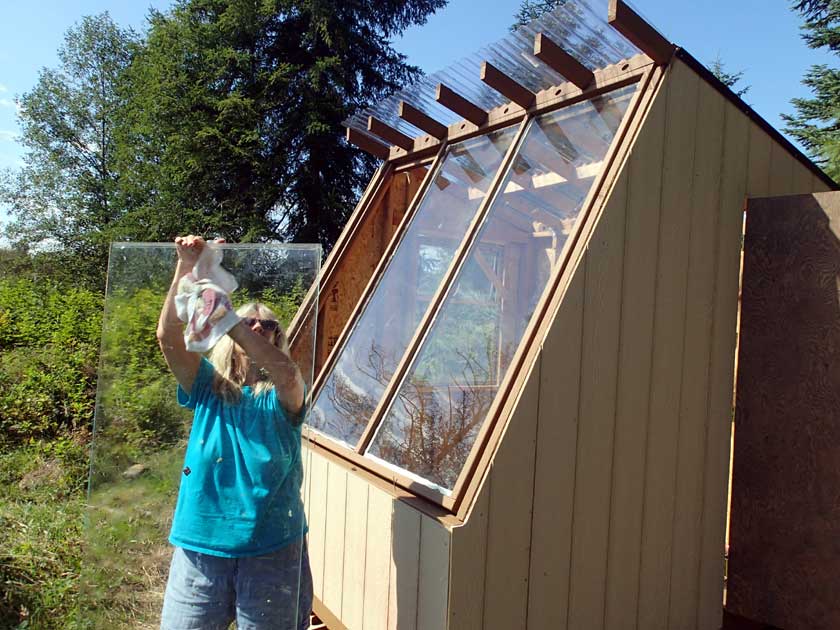

Last cleanup before installation

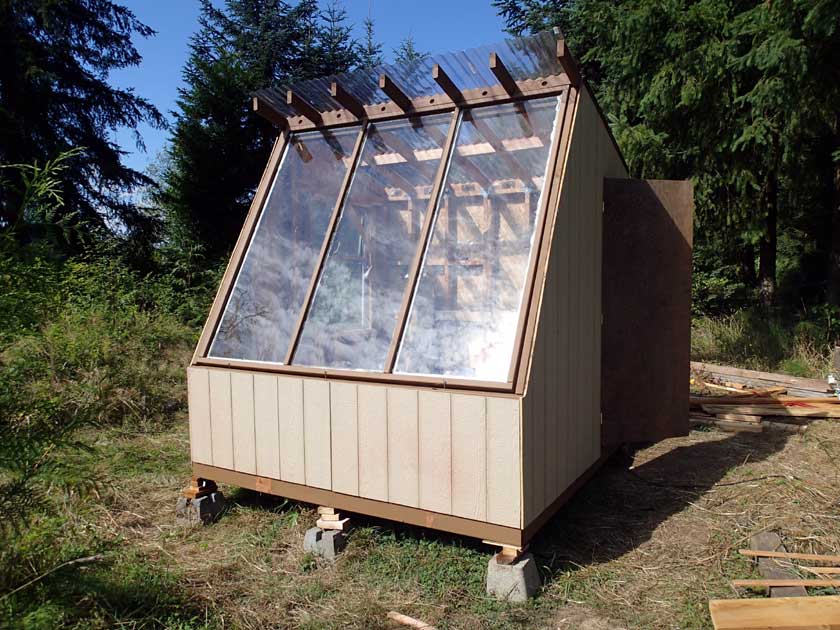

Exterior shot. It gets so hot inside, now it needs a fan!


Shaping a cedar handle for the door

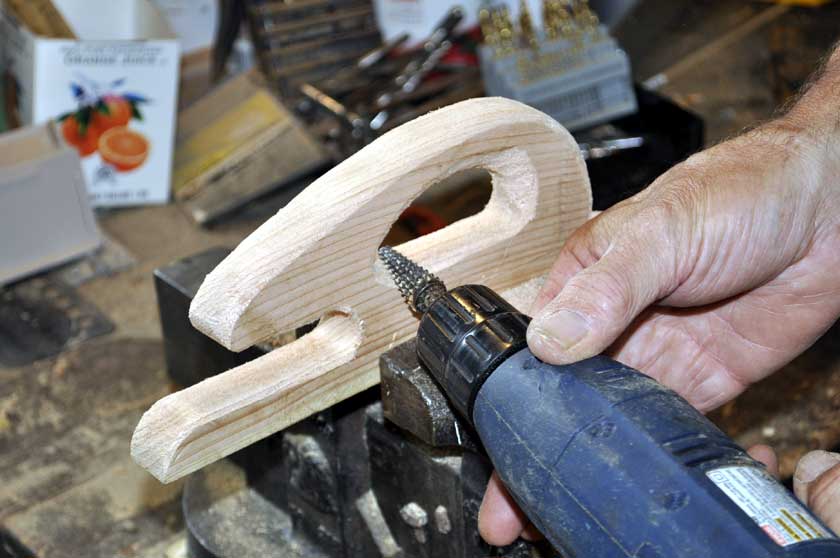

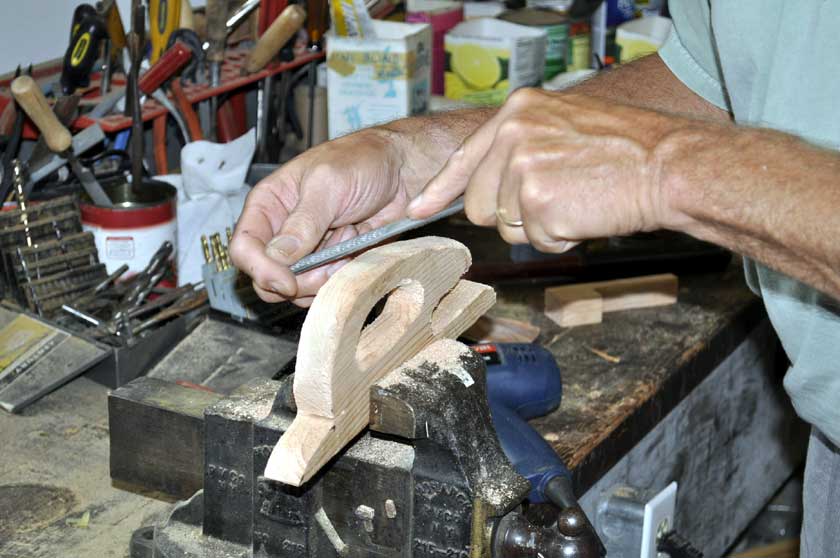

shaping handle cutout with rasp

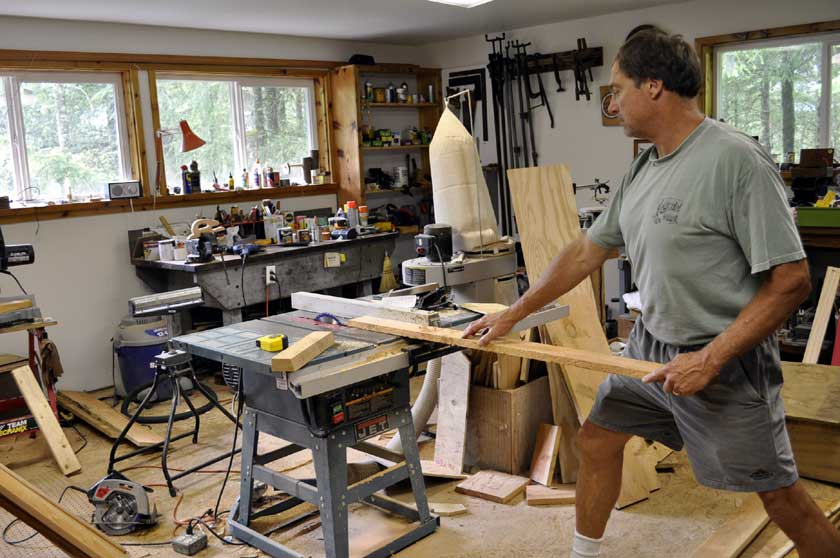

Ripping trim pieces from 1" rough lumber from the tree farm wood-yard.
Before turning on the saw, Dave donned safety glasses

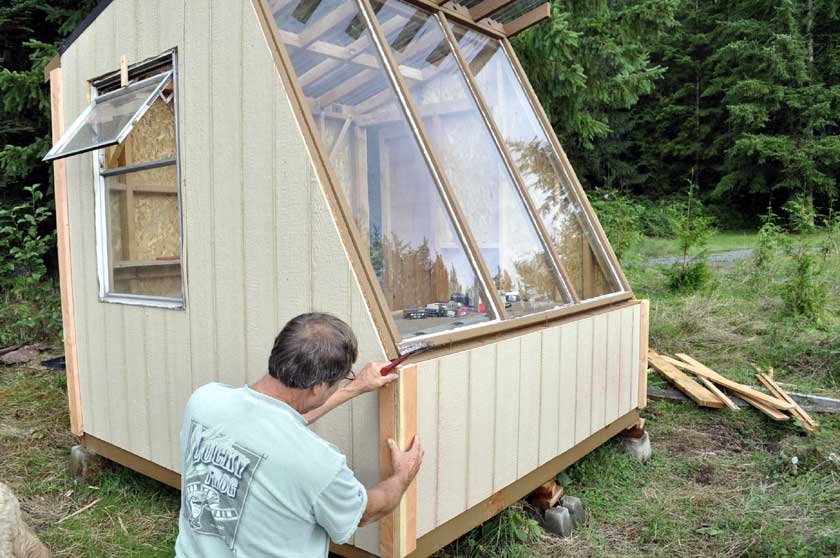

Installing trim

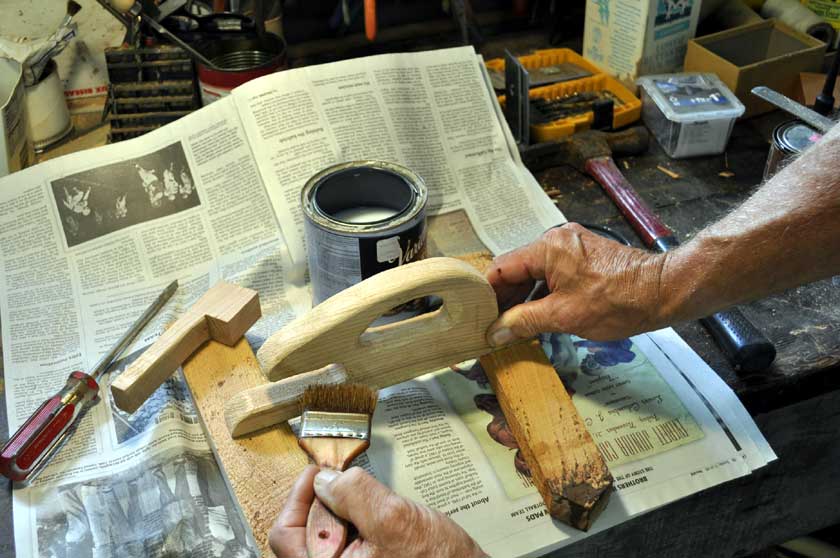

Painting clear sealer on finished handle. Note the "lock".

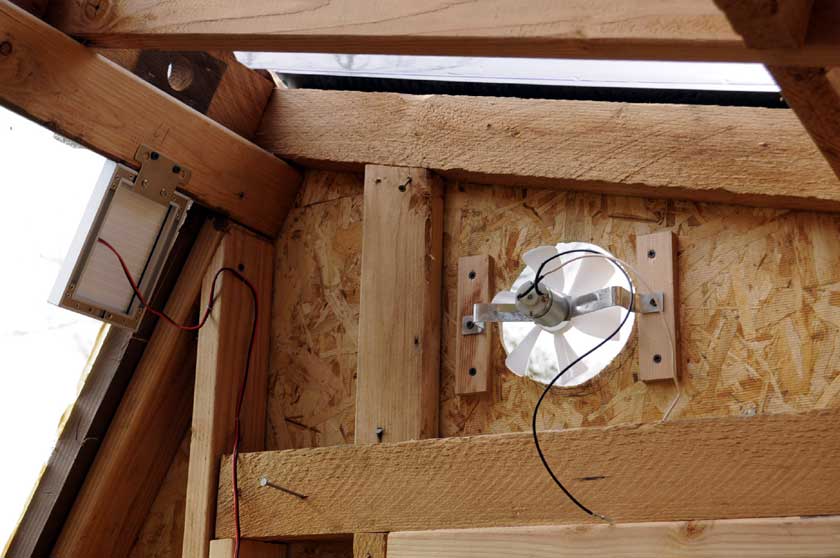

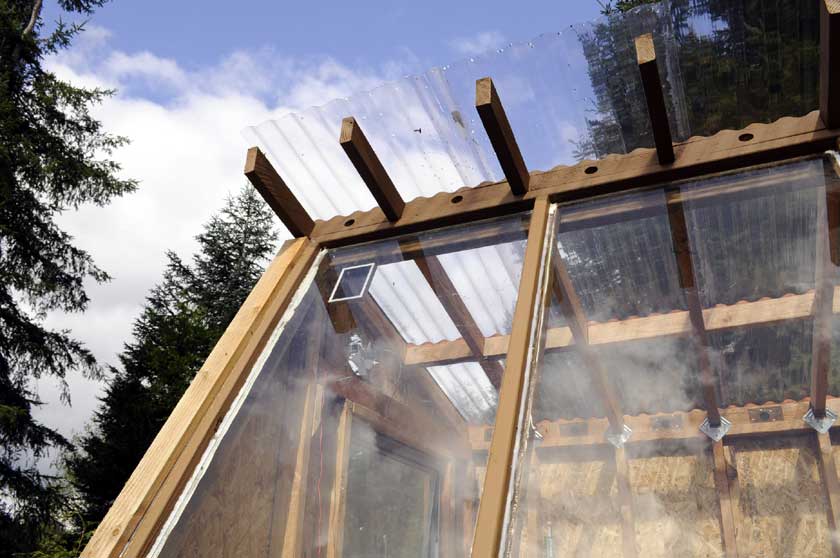

Adding 12V Solar Cell for "free power" vent fan



12V fan from an RV catalog

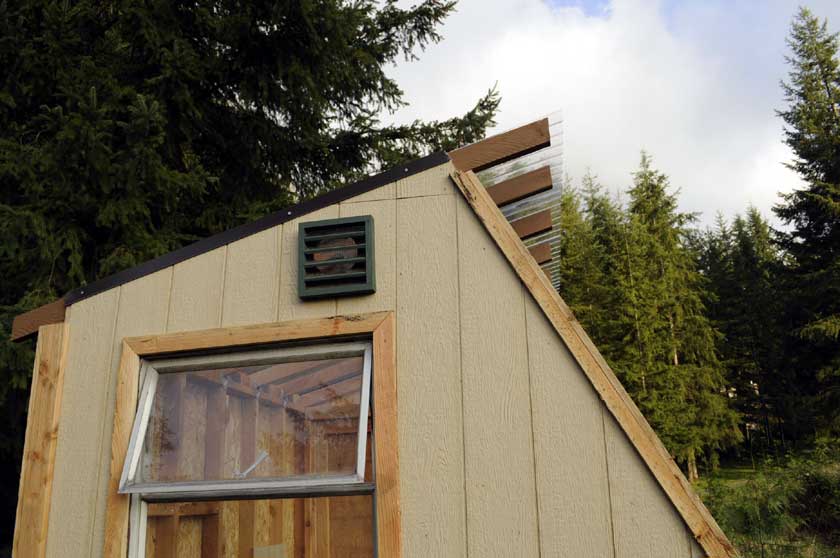

Outside fan louver

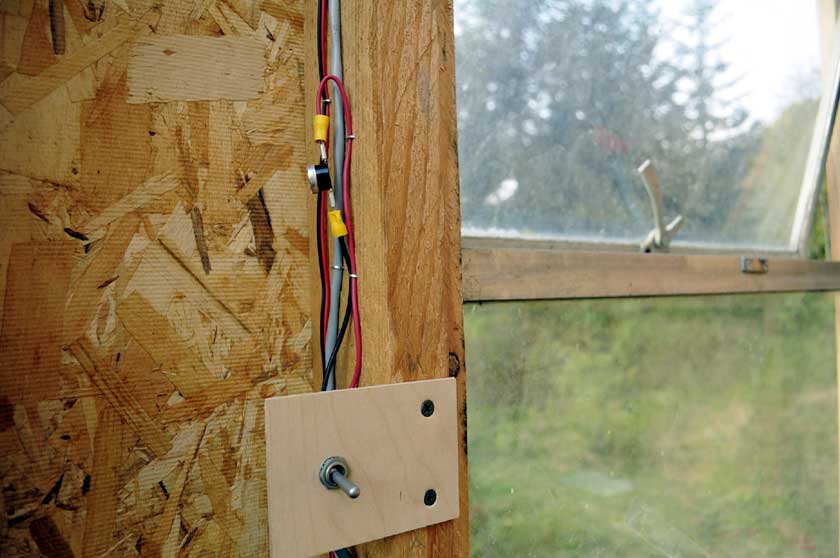

Auto or Manual temperature control switch

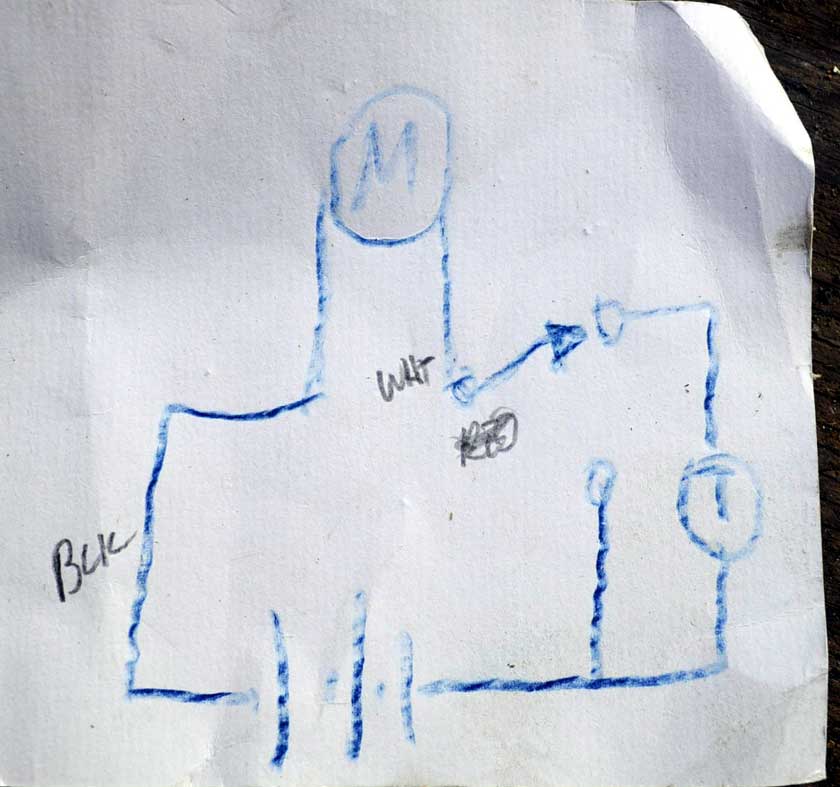

Automatic mode turns on fan at 85F View schematic diagram

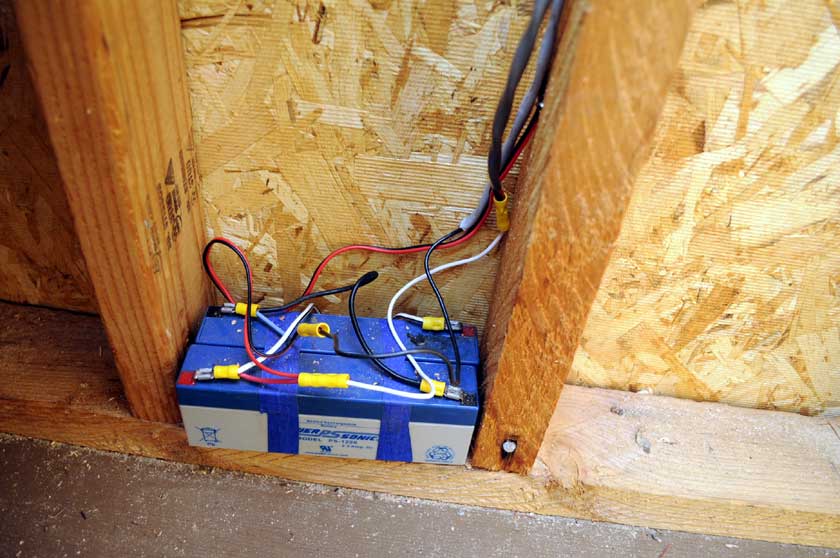

12Volt Gel Cells store the solar energy

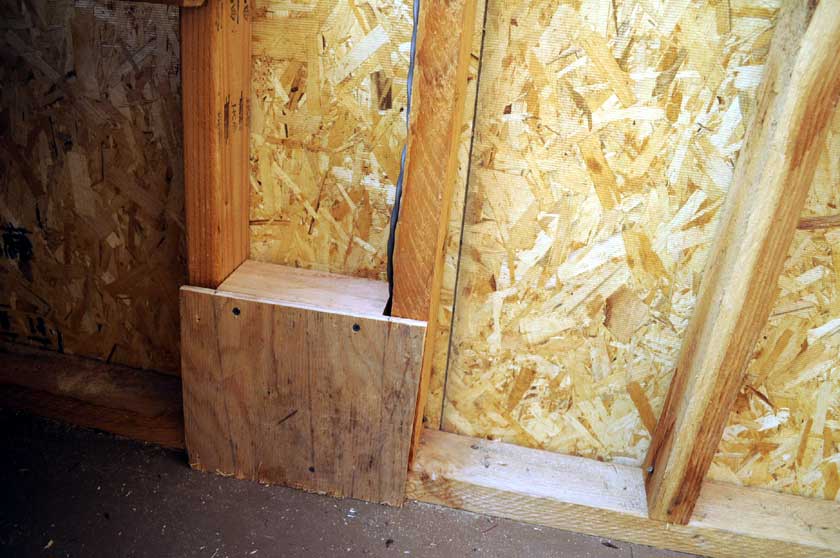

Wooden cover for the battery pack
