Solar Powered Landscape Light System

Design Problem:
Charge a battery with a small solar panel and have it power five LED yard lights for a few hours after sunset.

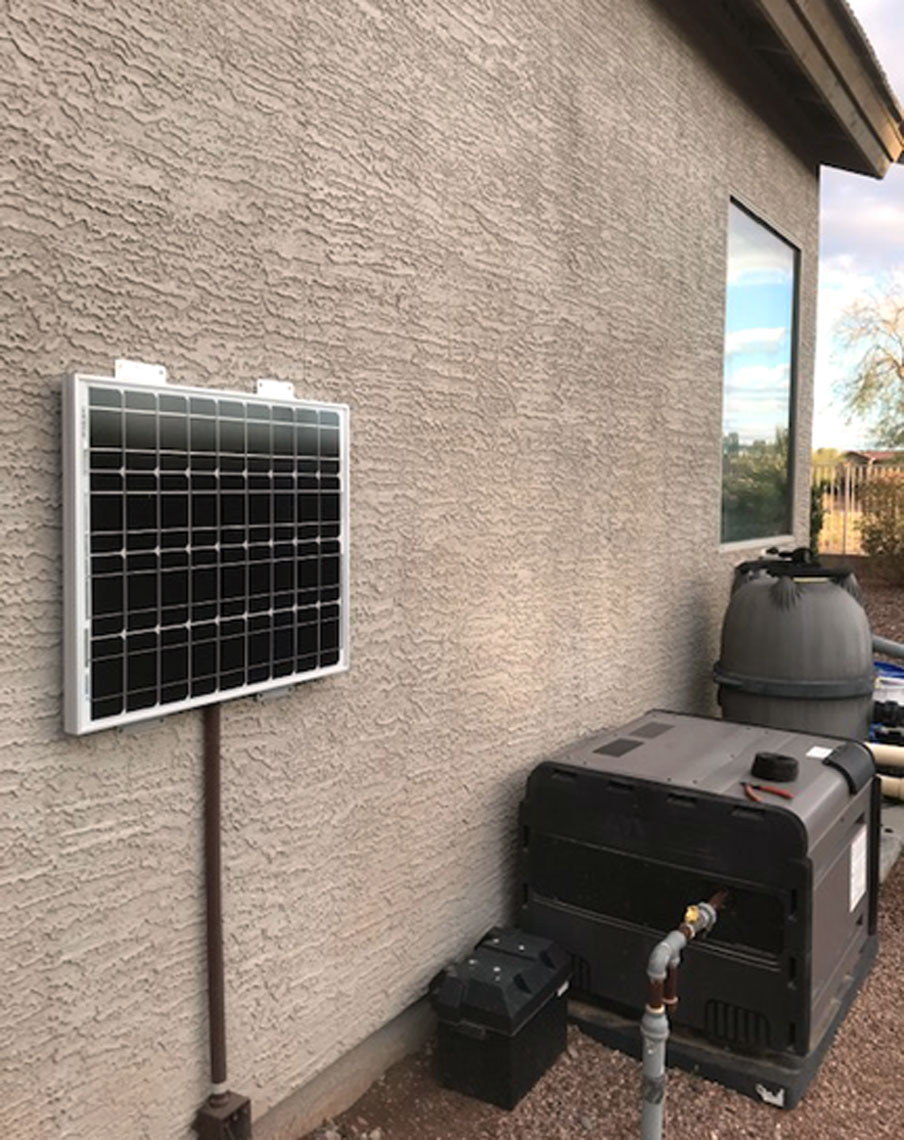

50 W Solar Panel mounted on South side of house

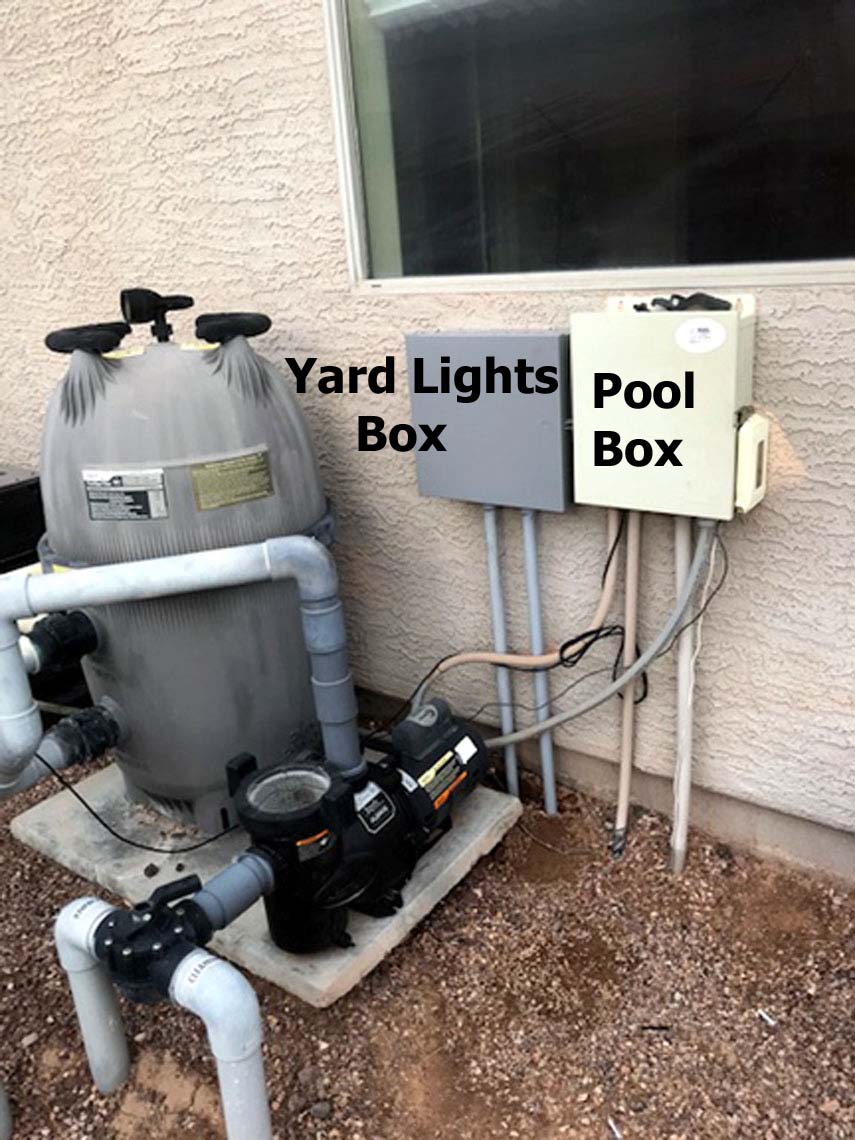

Pool Electrical and Solar Control mounted together



We chose a new battery technology for this project.
Lithium Iron Phosphate (LiFePO4)
It has several new advantages over older battery technology.
Here's the wiki

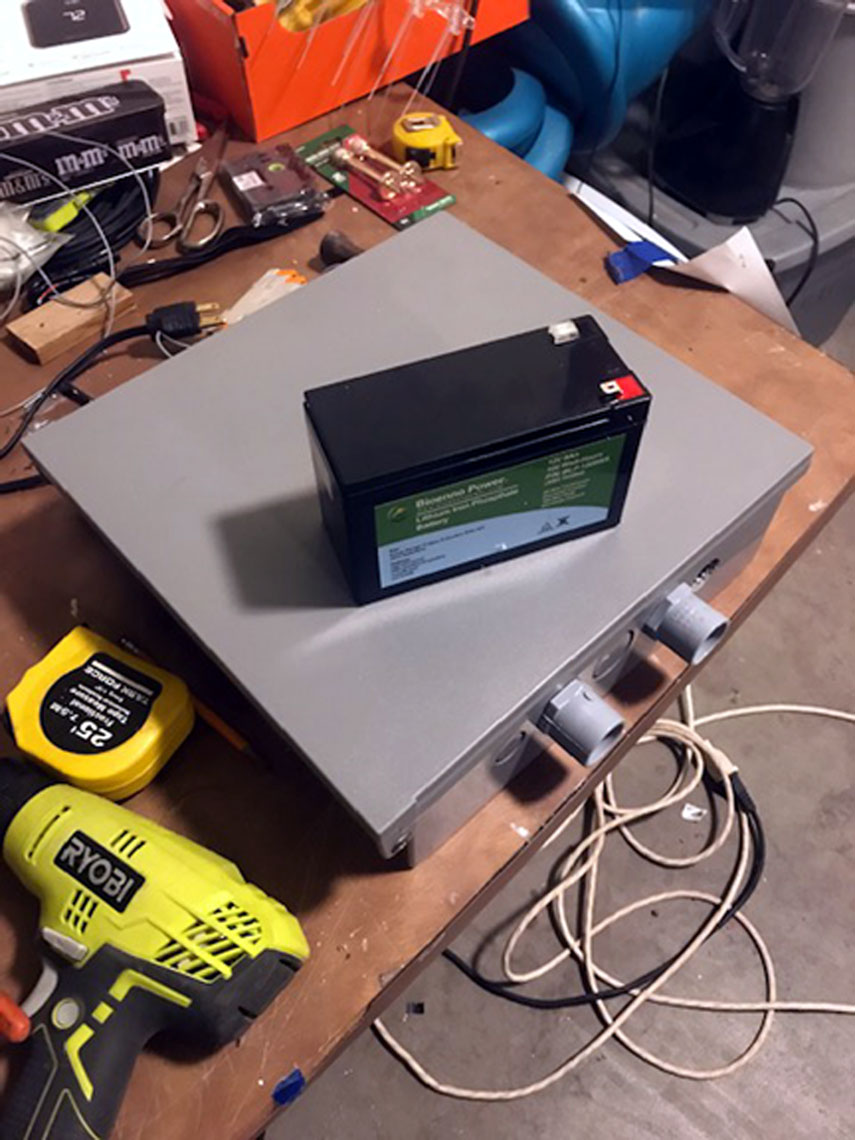

12x12 Plastic Utility box with hinged cover
Initial parts layout and planning

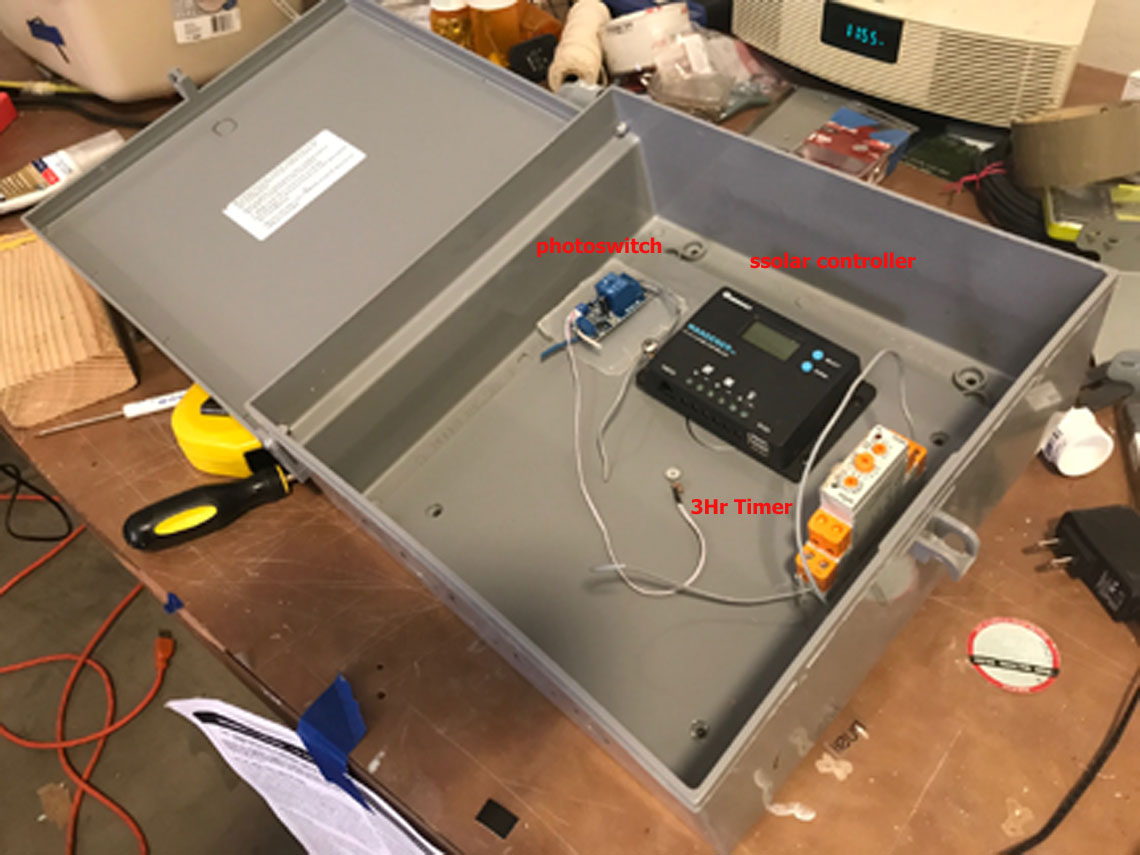

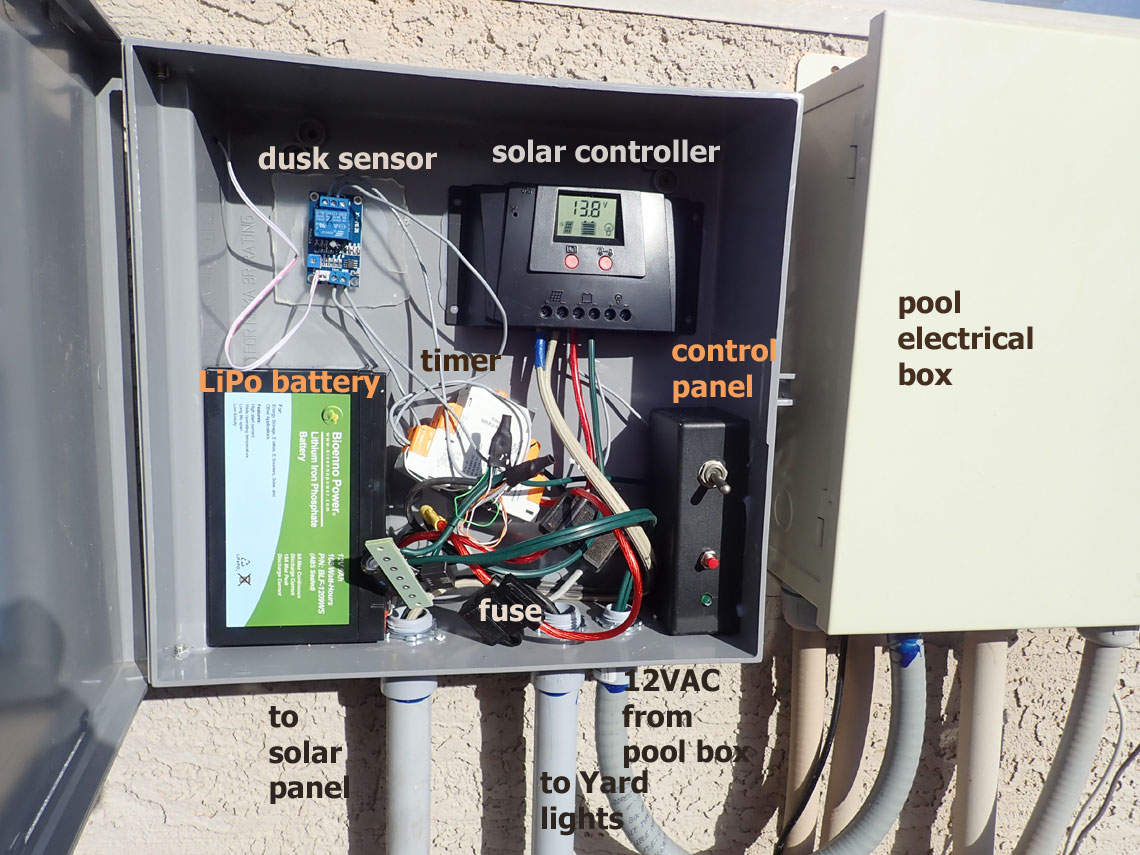

Note dusk sensor board, solar controller, timer module

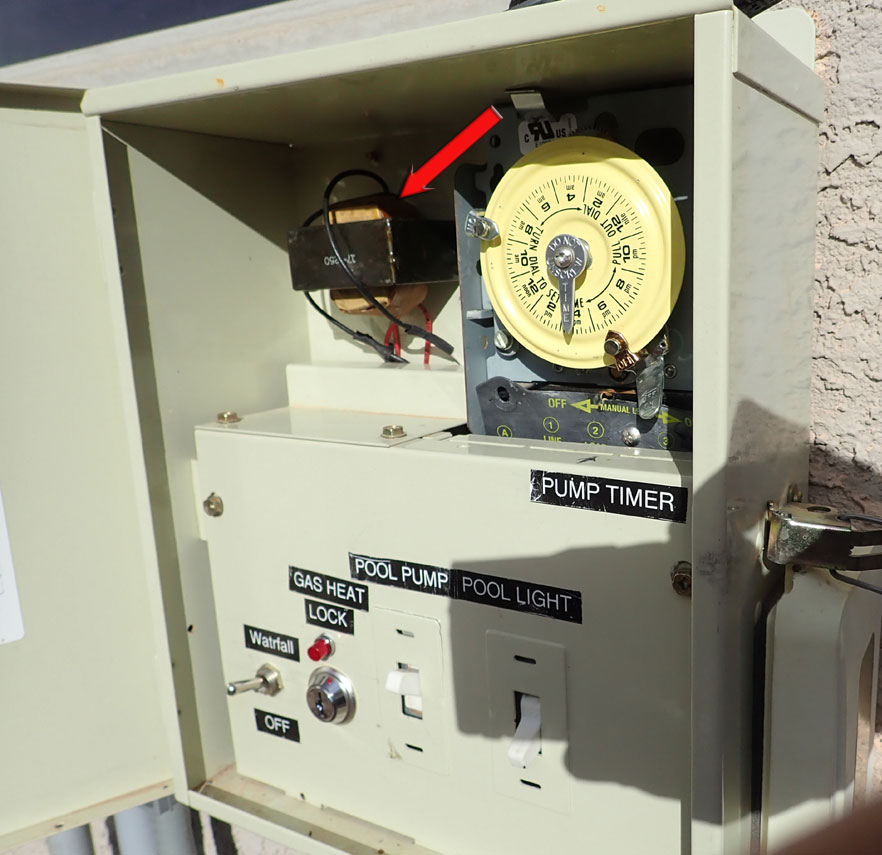

AC transformer mounted in pool electrical box
In a prior installation we learned that the solar lighting system control power is preferred to come from an AC source.
We needed AC for a new "waterfall" on-off valve for the pool so it lended itself nicely to also power the control electronics modules.
Note the waterfall toggle switch and the key switch for the pool gas heater.

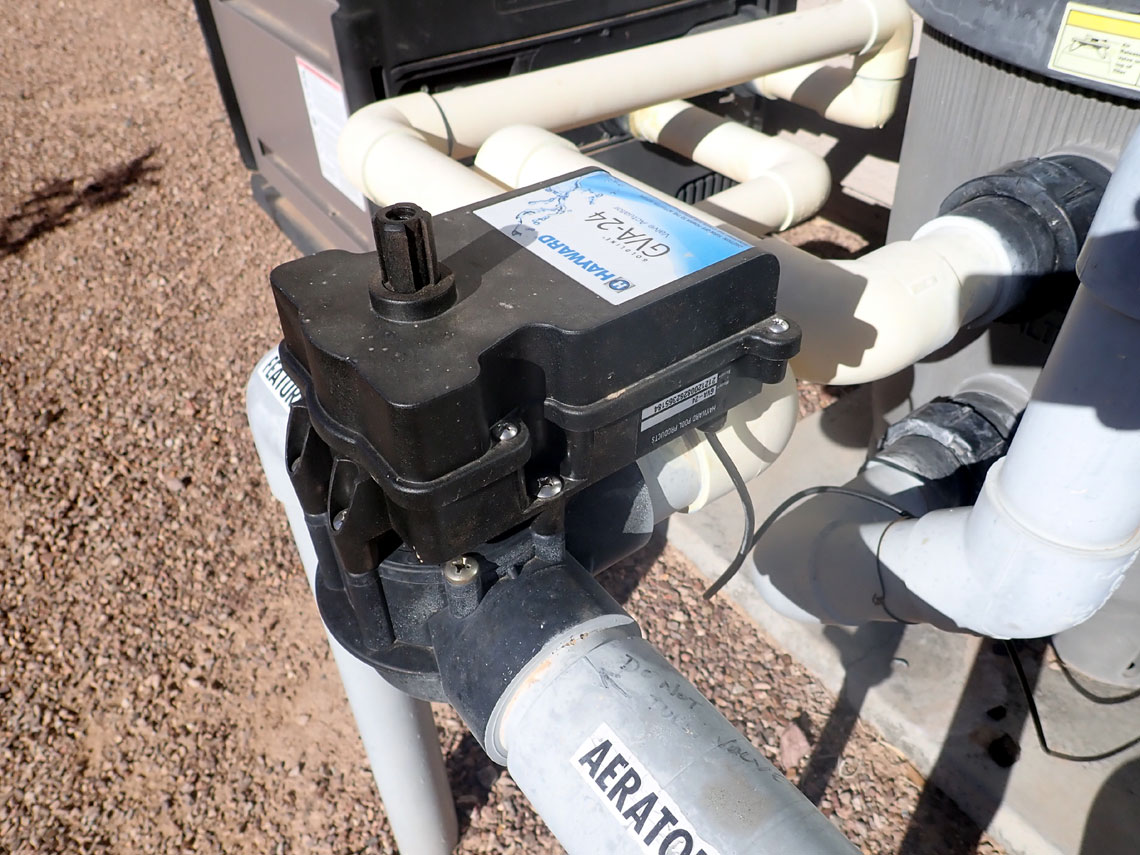

Motorized Valve
Runs off the AC transformer and makes it easy to select the waterfall feature without disturbing the other pool valves and pool equipment.
View waterfall

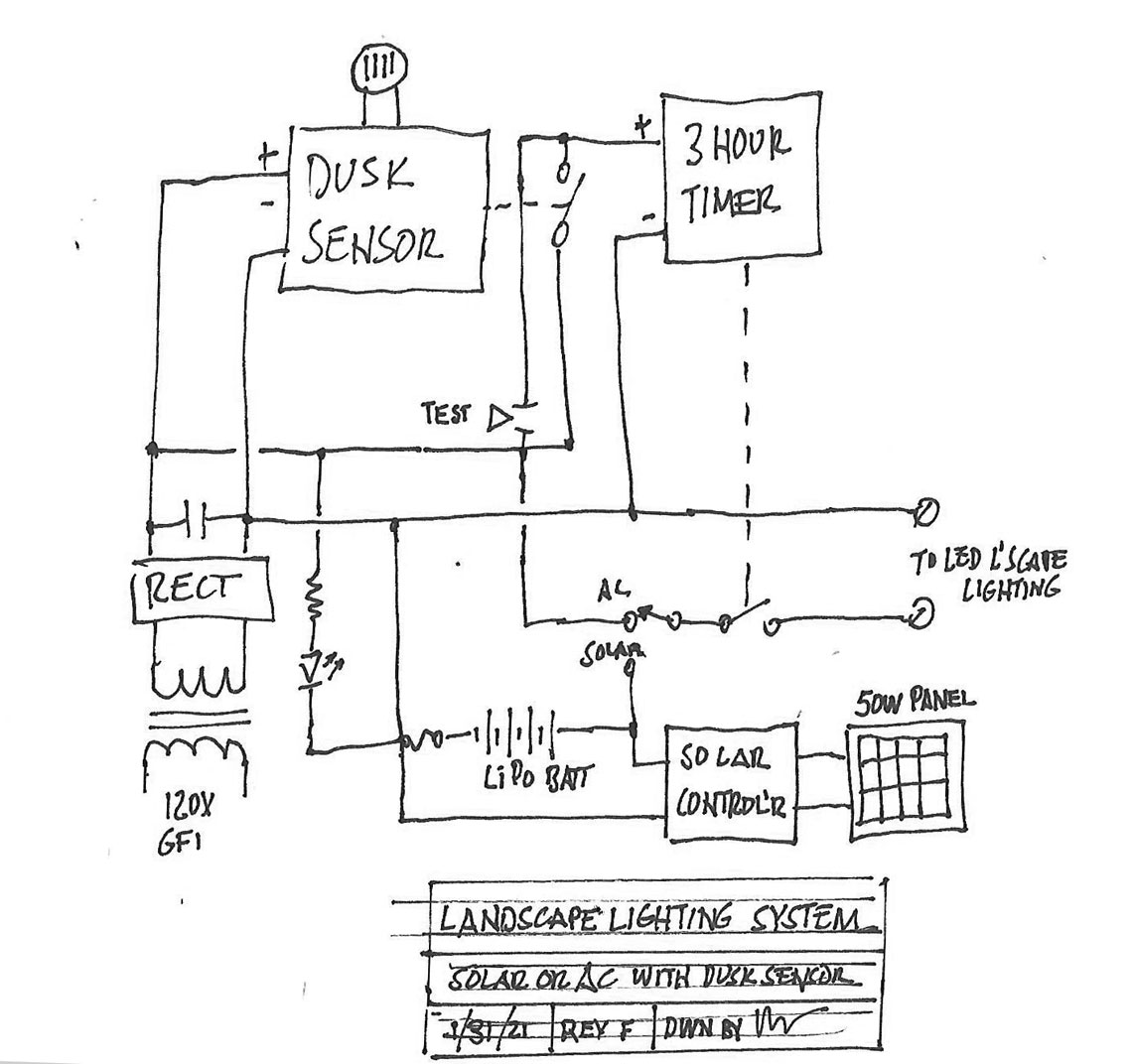

Schematic Diagram
How it works: Dusk sensor senses sunset and the onset of dusk. It closes a relay contact and sends power to a commercial delay timer. The timer energizes and sends power from the LiPo battery to the LED landscape lights for a period of three hours. We added a test switch, AC power indicator and the ability to run the system on AC without the battery. Solar panel and Solar Controller keep the battery at full charge.





 Final Parts Layout

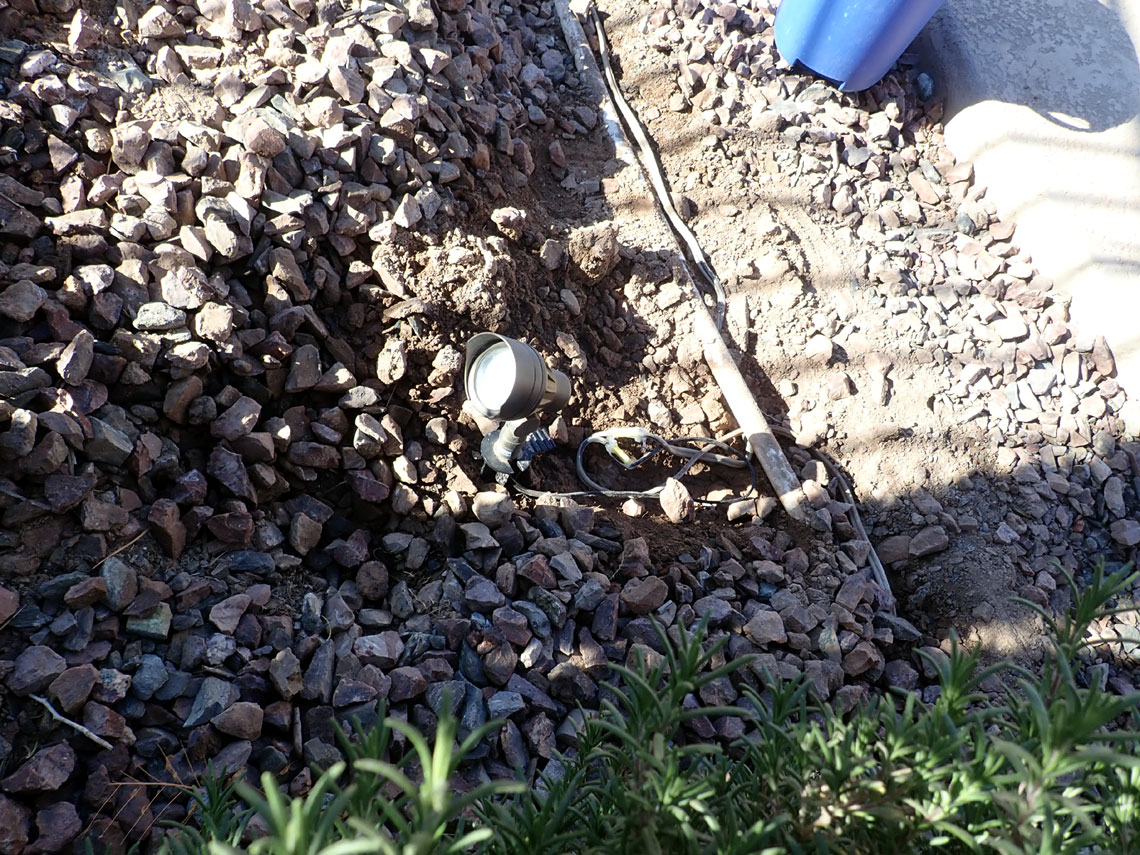

Landscape spotlight installation
Note 1/2" irrigation line and low voltage wiring

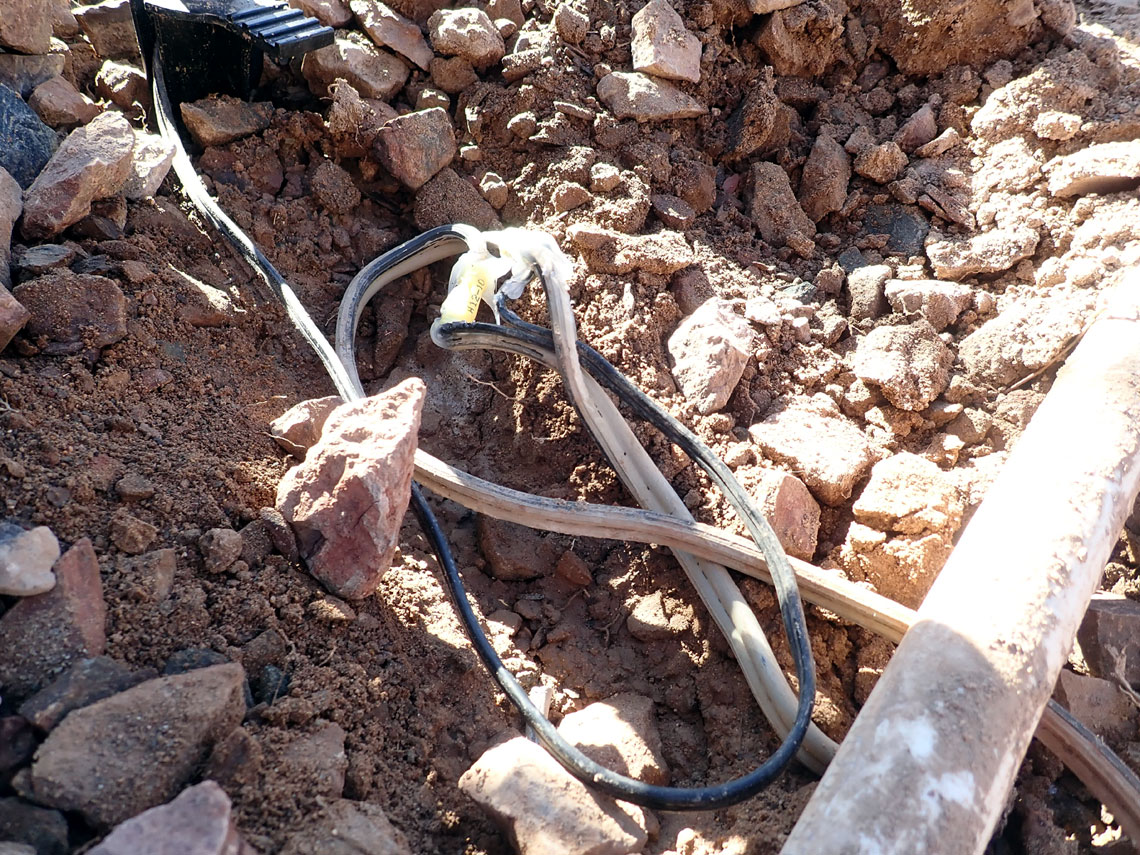

Splice technique using a12 gage splice
Liberal amounts of RTV sealant were used to seal the ends against moisture. It was then buried 2"-3" underground.





Evolution of this system began with these two projects:

Hack of a cheap home depot  yard light setup

Design and experimentation with a solar landscape system
